PCB1B | Kenick | Power Monitoring & Protection

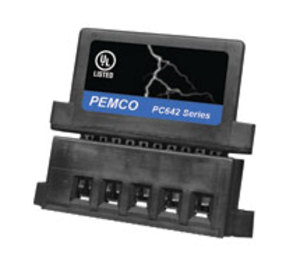

CONNECTOR BASE FOR PC642C
Brand:Kenick
MPN:PCB1B
SKU:PCB1B
List Price:
$88.88
Today's Price:
$46.22
product specifications
Type
Mounting Base
Device Type
Accessory
product series specifications
- Voltage Clamp :
- (±10%) 8, 15, 30, or 36V
- Response Time:
- <1 ns
- Peak Surge Current:
- <10 kA (8 x 20 μs)
- Life Expectancy:
- >100 occurrences @ 2000A, 8 x 20 μs
- Series Resistance :
- 5Ω nominal
- Dimensions :
- 2.5"H x 1.0"W x 2.0"D
- :
- (6.1 x 2.5 x 5.1 cm)
- Capacitance:
- 1500 pF; PC642 w/ LC option: 50 pF
- Operational Current :
- Maximum 150 mA @ clamp voltage
- Protector:
- Primary Three-element gas tube (GDT)
- :
- Secondary Rugged solid-state avalanche diode (SAD)
- :
- Third Positive temp coefficient device (PTC)
- Operating Temperature:
- -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
- Weight :
- 0.06 lb (0.03 Kg)
- Approvals:
- UL497B, UL File #E175287
- Warranty :
- 5 years
product series features
- Three stage hybrid protection
- Sneak/fault current protection
- Resettable fusing - PTCs
- Low capacitance option
- Plug-in module
- 5 year warranty
more information & related documents
Series Description
The PC642C Series surge suppressor is a dual-pair (four wire) module implementing three-stage hybrid technology. This module addresses over-voltage transients with gas tubes and silicon avalanche components. In addition, sneak and fault currents are mitigated with automatic resetting fuses (PTCs). The PTCs increase resistance several orders of magnitude when over currents are present and return to normal when over-currents are removed. The ability to self-restore in this manner significantly increases suppressor performance and survivability.
Kele Description
CONNECTOR BASE FOR PC642C
Manufacturer
Kenick
Related Documents
