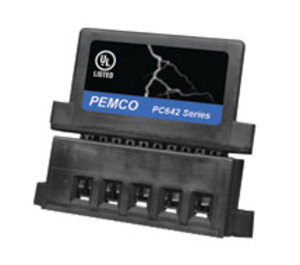

* product series image displayed

PC642C-036 | Kenick | Power Monitoring & Protection

DATA PROTECTOR-CLAMP VOLT 36V

Brand:Kenick

MPN:PC642C-036

SKU:PC642C-036

List Price:

$377.00

Today's Price:

$196.04

catalog page

Lead time of 3 days. Chat with Kele experts now

product specifications

Operating Voltage

36 V

Number of Circuits

Mount

DIN rail

product series specifications

Voltage Clamp: (±10%) 8, 15, 30, or 36V

Response Time: <1 ns

Peak Surge Current: <10 kA (8 x 20 Œºs)

Life Expectancy: >100 occurrences @ 2000A

Series Resistance: 5Ω nominal

Dimensions: 2.5"H x 1.0"W x 2.0"D (6.1 x 2.5 x 5.1 cm)

Capacitance: 1500 pF; PC642 w/ LC option: 50 pF

Operational Current: Maximum 150 mA @ clamp voltage

Protector:

Primary Three-element gas tube (GDT)

Secondary Rugged solid-state avalanche diode (SAD)

Third Positive temp coefficient device (PTC)

Operating Temperature: -40° to 185°F (-40° to 85°C)

Weight: 0.06 lb. (0.03 Kg)

Approvals: UL497B, UL File #E175287

Warranty: 5 years

product series features

Three stage hybrid protection
Sneak/fault current protection
Resettable fusing - PTCs
Low capacitance option
Plug-in module
5 year warranty

more information & related documents

Series Description

The PC642C Series surge suppressor is a dual-pair (four wire) module implementing three-stage hybrid technology. This module addresses over-voltage transients with gas tubes and silicon avalanche components. In addition, sneak and fault currents are mitigated with automatic resetting fuses (PTCs). The PTCs increase resistance several orders of magnitude when over currents are present and return to normal when over-currents are removed. The ability to self-restore in this manner significantly increases suppressor performance and survivability.

Kele Description

DATA PROTECTOR-CLAMP VOLT 36V

Manufacturer

Kenick
