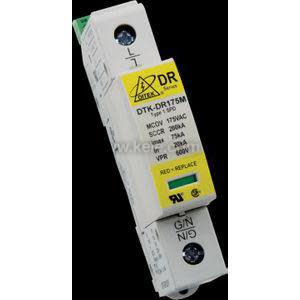

DTK-DR120P1 | Ditek | Power Monitoring & Protection
The DTK-DR Series of DIN Rail surge protectors are designed to provide point-of-use protection for machine control panels and similar applications in commercial and industrial environments. The DTK-DR120P1 protects 120VAC single phase panels.
Brand:Ditek
MPN:DTK-DR120P1
SKU:DTK-DR120P1
List Price:
$185.00
Today's Price:
$96.20
Log in for customized pricingproduct specifications
Indication
Relay
Operating Voltage
120 VAC
Type
120V
Number of Circuits
1
Mount
DIN rail
product series specifications
Surge Current Rating: 75,000 Amps
SCCR: 200,000A RMS
Frequency: 50-60Hz
Connection Method: Hardwired: #14-4AWG Solid/Stranded Cu Dry Contact: #30-16AWG
Housing: IP20, UL94 V0
Mounting: DIN-Rail - 35mm
Surge Protection Status: Green - Normal, Red - Replace
Remote Monitoring: Form C Dry Contact, 250VAC/1A Max, 125VAC/3A Max
Operating Temperature: -40°F - 185°F (-40°C - 85°C)
Humidity: 5 - 95% Relative
Dimensions: 4.19" L x 0.69" W x 2.81" H (1 pole) (106mm x 18mm x 71mm)
Approvals: UL1449 4th Edition Recognized/CE
SPD Type: Type 1CA, Type 2CA (Canada)
Standard Compliance: ANSI/UL1449 4th Edition ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant
Warranty: 5 year limited
product series features
- Compact, modular design for easy integration within machine control panels
- Quick replacement of protection module when needed
- DIN-Rail mounting configuration
- Remote end of life indicator for surge protection status: NO/NC Form C Dry Contact
- Visual end of life indicator for surge protection status: RED=End of life
more information & related documents
Series Description
Ditek's DIN-Rail DTK-DR Series surge protectors are designed to protect against the harmful effects of transient surges caused by direct or indirect lighting, power company grid switching, and inductive load switching. These high-performance SPD's provide point-of-use surge protection for critical operations within commercial and industrial environments.
Kele Description
DIN RAIL SPD 120VAC SINGLE PHASE, 1 POLE
Manufacturer
Ditek
Ditek Application Guide Rev 16
