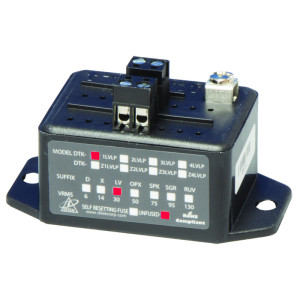

DTK-1LVLPLV | Ditek | Power Monitoring & Protection
1PR 30V 22-16 AWG TERM STRIP UL497B LISTED
Brand:Ditek
MPN:DTK-1LVLPLV
SKU:DTK-1LVLPLV
List Price:
$-.--
Today's Price:
$-.--
Availability: Part discontinued. Please contact your Kele representative at 1.877.826.9045 for replacement.
product specifications
Mounting
Foot
Type
30V
Number of Circuits
1
Operating Voltage
30 V
product series specifications
- Service Voltage:
- 120 VAC
- Frequency:
- 0 Hz- 400 Hz
- Filtering:
- RFI/EMI noise
- Continuous Current:
- Unlimited
- Protection:
- 700 V L-N, L-G
- 600V N-G:
- Clamping Level:
- 130 VRMS/185V peak
- Surge Current:
- 19,500A
- Response Time:
- <1 ns
- Connections:
- 3/4" hub-mount 3-12 AWG leads
- Dimensions:
- 2.9"H x 2.8"W x 1.7"D (7.3 x 7.1 x 4.3 cm)
- Weight:
- 0.5 lb (0.22 kg)
- Approvals:
- UL 1449, IEEE C62.41B, File #E136659
- Warranty:
- 10 years
product series features
- Compact, parallel mounted 120VAC/20A protection for a wide variety of industrial control applications (BAS Contractors)
- Ideal for use in UL 508A panels, SCADA systems, water treatment facilities and industrial control panels
- Diagnostic LED, small footprint, and weatherproof enclosure
more information & related documents
Series Description
The Ditek DTK-120HW was designed and manufactured to meet the standards of the life safety industry. This compact, parallel-mount surge protector is widely used to protect fire alarm panels and other dedicated branch circuit loads. The new DTK-120HWLOK includes an NFPA 72 2013 10.6.5.2 compatible lockout kit to prevent accidental disconnect of the fire alarm system.
Kele Description
1 PAIR 30V TERMINAL STRIP SURGE PROTECTION
Manufacturer
Ditek
