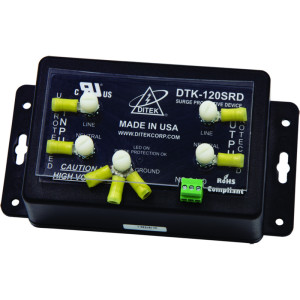

DTK-120SRD | Ditek | Power Monitoring & Protection
120V-20A HARDWIRE SERIES HYBRID W/FILTER 2W+G W/DRY CONTACTS
Brand:Ditek
MPN:DTK-120SRD
SKU:DTK-120SRD
List Price:
$454.00
Today's Price:
$236.08
product specifications
Indication
Relay
Mounting
Foot
Type
120V
Number of Circuits
1
Operating Voltage
120 V
product series specifications
- Supply Voltage:
- 120VAC
- Maximum Continuous Operating Voltage:
- 150VAC
- Short Circuit Current Rating:
- 10kA
- Nominal Discharge Current Rating:
- 3kA
- Maximum Continuous Current:
- 20A
- Peak Surge Current:
- 54,000 Amps
- Operating Frequency:
- 40 - 400 Hz
- Temperature Range:
- 32 to 104‚Ñâ (0 to 40‚ÑÉ)
- Protection:
- :
- DTK-120SRD Type 2 component assembly
- :
- DTK-TSS4D Type 2 SPD
- Operating Temperature:
- -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
- Enclosure Rating:
- :
- DTK-120SRD NEMA 1, ABS
- :
- DTK-TSS4D NEMA 4X, Polycarbonate
- Dimensions:
- :
- DTK-120SRD 6.87‚Ä= W x 3.50‚Ä= H x 2.50‚Ä= D (17.45 x 8.89 x 6.35 cm)
- :
- DTK-TSS4D 9.50" W x 6.25" H x 3.63" D (24.1 x 15.9 x 9.2 cm)
- Weight:
- :
- DTK-120SRD 0.76 lb (0.34 Kg)
- :
- DTK-TSS4D 1.85 lb (0.84 Kg)
- Approvals:
- UL 1283, UL 1449. UL FIle #E328951
- Warranty:
- 10 year limited
product series features
- Robust 120VAC/20A protection with EMI/RFI filtering for a wide variety of industrial control applications (BAS Contractors)
- Ideal for use in UL 508A panels, SCADA systems, water treatment facilities and industrial control panels
- Form C dry contact circuit for remote notification of surge protector status
- Available in a NEMA 4X outdoor rated enclosure, part #DTK-TSS4D
more information & related documents
Series Description
The Ditek 54kA Series connected surge protectors are designed to protect dedicated 120VAC power circuits that feed control panels and other critical equipment. The hybrid series design provides maximum critical load protection, and includes dry contacts for remote notification of surge protection status. EMI/RFI filtering ensures clean power for connected equipment. The DTK-120SRD is ideal for use in UL listed control panels where a UL recognized component is required. The DTK-TSS4D with NEMA 4X enclosure is required for harsh environments, or when a UL Listed SPD is required.
Kele Description
120V-20A HRDWIRE HYBRID W/FLTR 2W+G W/ DRY CNTCTS
Manufacturer
Ditek
Related Documents
DTK-120SRD DS
