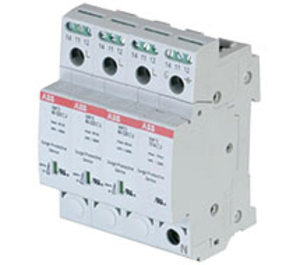

OVRT270NCU | ABB | Power Monitoring & Protection
OVR SPD 70KA NEUTRAL CARTRIDGE 3RD
Brand:ABB
MPN:OVRT270NCU
SKU:OVRT270NCU
product specifications
Operating Voltage
70 V
Number of Circuits
3
Mount
DIN rail
product series specifications
Protected Voltage (±15%): 120 VAC, 277 VAC, 347 VAC, 480 VAC, 600 VAC, 230 VAC
Frequency: 50-60Hz
Continuous Voltage Max: See Ordering Information
Surge Current: 15 kA, 40 kA, 70 kA
Response Time: <25ns
Wire Size: Solid 4-14 AWG, Stranded 6-14 AWG
Dimensions:
1 Pole: 0.7" W x 3.3" H x 2.6" D (1.8 x 8.4 x 6.4cm)
2 Pole: 1.4" W x 3.3" H x 2.6" D (3.6 x 8.4 x 6.4 cm)
3 Pole: 2.1" W x 3.3" H x 2.6" D (5.3 x 8.4 x 6.4 cm)
1 Pole + N: 1.4" W x 3.3" H x 2.6" D (3.6 x 8.4 x 6.4 cm)
2 Pole + N: 2.1" W x 3.3" H x 2.6" D (5.3 x 8.4 x 6.4 cm)
3 Pole + N: 2.8" W x 3.3" H x 2.6" D (7.1 x 8.4 x 6.4 cm)
Weight:
1 Pole: 0.25 lb (0.1 Kg)
2 Pole / 1 Pole + N: 0.5 lb (0.2 Kg)
3 Pole / 2 Pole + N: 0.75 lb (0.3 Kg)
3 Pole + N: 1.0 lb (0.45 Kg)
Approvals: CE, RoHS, UL1449 #E322885
Warranty: 1 year
product series features
- MOV technology
- End of life indicator
- Pluggable, replaceable cartidges
- Remote indication (only on -TSU models)
more information & related documents
Series Description
The ABB OVR DIN Rail Series surge protection devices are the pluggable AC DIN rail devices. They are UL 1449 3rd edition. Over 80% of transient surges are caused by internal sources such as load switching and normal equipment operations. Installation of these SPD's will provide protection to valuable equipment and help keep an operation up and running. Installation at branch panels, control panels and terminal equipment is recommended to provide the most comple protection. The OVR DIN Rail Series utilize fast acting metal oxide varistor technology to limit overvoltage to values compatible with the sensitive equipment connected to the network.
Kele Description
OVR SPD 70KA NEUTRAL CARTRIDGE 3RD
Manufacturer
ABB
Related Documents
OVR DIN Series Datasheet
