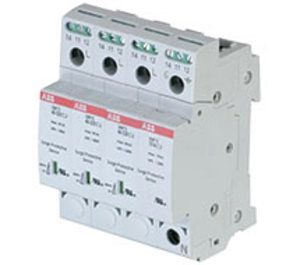

* product series image displayed

OVRT21N15150P | ABB | Power Monitoring & Protection

OVR SPD 1P+N 15KA 175V P 3RD ED

Brand:ABB

MPN:OVRT21N15150P

SKU:OVRT21N15150P

List Price:

$808.00

Today's Price:

$420.16

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Operating Voltage

150 V

Number of Circuits

Mount

DIN rail

product series specifications

Protected Voltage (±15%): 120 VAC, 277 VAC, 347 VAC, 480 VAC, 600 VAC, 230 VAC

Frequency: 50-60Hz

Continuous Voltage Max: See Ordering Information

Surge Current: 15 kA, 40 kA, 70 kA

Response Time: <25ns

Wire Size: Solid 4-14 AWG, Stranded 6-14 AWG

Dimensions:

1 Pole: 0.7" W x 3.3" H x 2.6" D (1.8 x 8.4 x 6.4cm)

2 Pole: 1.4" W x 3.3" H x 2.6" D (3.6 x 8.4 x 6.4 cm)

3 Pole: 2.1" W x 3.3" H x 2.6" D (5.3 x 8.4 x 6.4 cm)

1 Pole + N: 1.4" W x 3.3" H x 2.6" D (3.6 x 8.4 x 6.4 cm)

2 Pole + N: 2.1" W x 3.3" H x 2.6" D (5.3 x 8.4 x 6.4 cm)

3 Pole + N: 2.8" W x 3.3" H x 2.6" D (7.1 x 8.4 x 6.4 cm)

Weight:

1 Pole: 0.25 lb (0.1 Kg)

2 Pole / 1 Pole + N: 0.5 lb (0.2 Kg)

3 Pole / 2 Pole + N: 0.75 lb (0.3 Kg)

3 Pole + N: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS, UL1449 #E322885

Warranty: 1 year

product series features

MOV technology
End of life indicator
Pluggable, replaceable cartidges
Remote indication (only on -TSU models)

more information & related documents

Series Description

The ABB OVR DIN Rail Series surge protection devices are the pluggable AC DIN rail devices. They are UL 1449 3rd edition. Over 80% of transient surges are caused by internal sources such as load switching and normal equipment operations. Installation of these SPD's will provide protection to valuable equipment and help keep an operation up and running. Installation at branch panels, control panels and terminal equipment is recommended to provide the most comple protection. The OVR DIN Rail Series utilize fast acting metal oxide varistor technology to limit overvoltage to values compatible with the sensitive equipment connected to the network.

Kele Description

OVR SPD 1P+N 15KA 175V P 3RD ED

Manufacturer

ABB
