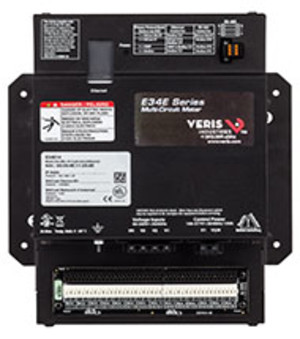

E34E08 | Veris | Power Monitoring & Protection

Measurement Voltage: 90 to 300 Vac line-to-neutral, 50/60 Hz

Control Power:

E34A: 90 to 277 Vac line-to-neutral, 50/60 Hz, 8 VA


E34E: 100 to 277 Vac line-to-neutral, 50/60 Hz, 15 VA

Power/Energy: IEC 62053-21 Class 0.5, ANSI C12.20 class 0.5

Voltage: ±0.5% of reading 90 to 277 V line-to-neutral

Current: ±0.5% of reading from 2% to 100% of full-scale

Sampling Frequency: 2560 Hz

Update Rate: 2 seconds (both panels)

Overload Capability: 22 kAIC

E34A Serial Communication:

Physical Interface: DIP switch-selectable 2-wire or 4-wire, RS-485

Protocols Supported: Modbus RTU

Address: DIP switch-selectable address 1 to 247 (in pairs of 2)

Baud Rate: DIP switch-selectable 9600, 19200, 38400

Parity: DIP switch-selectable NONE, ODD, EVEN

E34E Serial Communication :

Physical Interface: 2-wire RS-485

Protocols Supported: Modbus RTU

Address: 1 to 247 for Modbus RTU; 0-127 for BACnet MS/TP

Baud Rate: 9600, 19200, 38400

Parity:Modbus RTU: NONE, ODD, EVEN BACnet MS/TP:NONE (fixed)


E34E Ethernet Communication:

Physical Interface: RJ45 connector with 10/100 Mbit Ethernet

Protocols Supported: Modbus TCP, BACnet IP, SNMP V2c

Removable Connectors: 4.4 to 5.3 in-lb (0.5 to 0.6 N-m)

Operating Temp. Range: 0 to 60 °C (32 to 140 °F) (<95% RH non-condensing)

Storage Temp. Range: -40 to 70 °C (-40 to 158 °F)

Altitude of Operation: 3000 m

Mounting Location: Indoor use, dry location

Warranty: Limited 5 years

Approvals: UL508 open type device, IEC/EN61010-1

Installation Category: Cat III, pollution degree 2
