AH04 | Veris | Power Monitoring & Protection

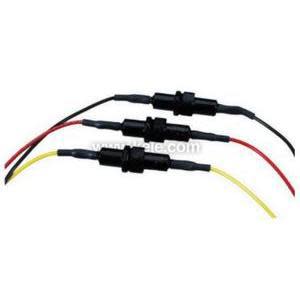

600 VAC Slow Blow Triple Fuse Pack
Brand:Veris
MPN:AH04
SKU:AH04
List Price:
$292.00
Today's Price:
$151.84
product specifications
Connection
Wire Leads
Type
Fuse Pack
Service Type
Accessory
product series specifications
- Supply Voltage:
- :
- UL 90 VAC (L-N) to 600 VAC (L-L), 50/60Hz
- CE:
- 90 VAC (L-N) to 300 VAC (L-L), 50/60Hz
- Monitored Voltage:
- Line to Line: 90 to 600 VAC
- Line to Line with potential transformer: 601 to 32000 VAC :
- Monitored Current:
- 5 to 32,000 Amps
- Availble CT's :
- 0 to 0.333 V or 0 to 1 V
- Input Signal:
- 2 (E50H5 only) Pulse Solid-State or mechanical contacts (current less than 1 mA) Minimum Pulse Width 20 msec
- Outputs:
- :
- E50B1 Reactive energy pulse 30 VAC/DC
- :
- E50C1 RS-485 2-wire Modbus RTU Basic Data Set
- :
- E50C2/E51C2 RS-485 2-wire, Modbus RTU Full Data Set
- :
- E50C3/E51C3 RS-485 2-wire Modbus RTU Full Data Set, data logging
- :
- E50H3 RS-485 2-wire BACnet MS/TP Full Data Set, data logging
- Accuracy:
- Real power and energy 0.2% (ANSI C12.20, IEC 62053-22 Class 0.2S)
- Operating Temperature:
- Meter:
- 22° to 158‚Ñâ (-30° to 70‚ÑÉ)
- Display:
- 14° to 122‚Ñâ (-10° to 50‚ÑÉ)
- Operating Humidity:
- < 95% RH non-condensing
- Enclosure Rating:
- NEMA 1
- Mounting:
- DIN Rail or 3-point screw mount
- Dimensions:
- 2.3" x 4.2" x 3.6" (5.9 cm x 10.7 cm 9.1 cm)
- Weight:
- 0.62 lb (0.28 Kg)
- Approvals:
- CE, UL508, UL File #E339785, RoHs
- Warranty:
- 5 years
product series features
- Monitors 1, 2, or 3 phase services
- Monitors services up to 600 VAC directly and 32,000 VAC with use of a potential transformer
- Accepts .333 VAC or 1V Current Transformer's (sold separately)
- DIN mounting for easy installation
- ANSI 12.20 0.5% accuracy
- BACnet, Modbus RTU or pulse output
- 90-600 VAC for application versatility
- Bright backlit LCD with easy visibility
- Pulse and phase loss alarms standard
- User-enabled password protection
- Approved for California Solar applications
more information & related documents
Series Description
The Veris E50 Series power meter provides a solution for measuring energy data with a single device. Inputs include Control Power, CT, and 3-phase voltage. The E50 supports multiple output options, including solid state relay contacts, BACnet, Modbus (with or without data logging), and pulse. The LCD screen on the faceplate allows instant output viewing. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN50022. The E50 can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meter is not sensitive to CT orientation to reduce installation errors.
Kele Description
FUSE PACK, TRIPLE
Manufacturer
Veris
