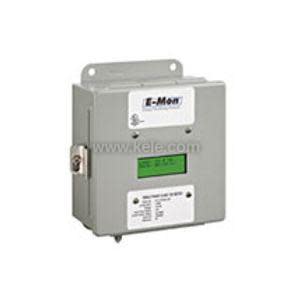

E50-480400-J05KIT-NS | E-Mon | Power Monitoring & Protection
277/480V 400A JIC EZ-7 BACnet IP NO 2V Output
Brand:E-Mon
MPN:E50-480400-J05KIT-NS
SKU:E50480400J5KTNS
product specifications
CT Inputs
3
Monitored Voltage
480 VAC
Monitored Current
400 A
Communication Protocol
EZ7
product series specifications
Supply Voltage: Up to 600 VAC RMS available, 50/60Hz
Communication: Modbus RTU or TCP/IP, BACnet IP or MS/TP, LonWorks
Input:
Voltage Configuration: 3-wire (Delta) or 4-wire (WYE)
CT Input: 0-2 VDC current sensors included
Available CT's: 5 Amp - Up to 3200 Amp RMS AC available
Overload Rating:
Voltage Overload +25% continuously; +100% for 20 cycles
Current Sensor Overload 100% for 1 minute without damaging meter
Accuracy: Certified to ANSI C12.20
Range:
4 Wire Wye 115/208 VAC: 100, 200, 400, 800, 1600, 3200 Amp
4 Wire Wye 277/480 VAC: 100, 200, 400, 800, 1600, 3200 Amp
3 Wire Delta 220/240 VAC: 100, 200, 400, 800, 1600, 3200 Amp
3 Wire Delta 480 VAC: 100, 200, 400, 800, 1600, 3200 Amp
Operating Temperature:
NEMA 4 (Outdoor) Housing: -4° to 158°F (-20° to 70°C)
NEMA 1 (Indoor) Housing: -4° to 122°F (-20° to 50°C)
Operating Humidity: 0 to 95% RH (non-condensing)
Enclosure Rating:
Models with R: NEMA 4
Models without R: NEMA 12
Dimensions-Meter: 7.5"H x 7"W x 3.75"D (19.1 x 17.8 x 8.3 cm)
Dimensions-Current Sensors Interior Window:
100A and 200A: 7/8” x 1-1/2"
400A: 1-1/2" x 2-3/4"
800A and 1600A: 3-1/4" x 4-1/2"
3200A: 5-7/16" x 7-7/8"
Battery: Non-rechargeable cell used for memory retention
Working Voltage 3 Vdc
Current Capacity 22.5 mAHr
Approvals: UL File #E249361
Warranty: 1 year
product series features
- Direct-read 8-digit LCD display of cumulative kWh
- Includes 0-2 volt output split-core current sensors
- Remote mounting of current sensors up to 500 feet from meter (using 22 Awg wire)
- Current sensor installation diagnostic indicator
- Available in standard JIC Industrial-grade steel enclosure
- UL Listed; meets or exceeds ANSI C12 national accuracy standards
- Optional power failure contact for alarming
- Dual protocol output
more information & related documents
Series Description
The Honeywell H-Series Class 500 Submeters come with enclosure, display, and does include split core current sensors. Available outputs include pulse, LonWorks, BACnet, BACnet IP, Modbus RTU, or Modbus TCP. There are 38 different points of information available on the communicating models. The dual protocol output allows operation for both RS-485 and Ethernet communication simultaneously. In addition, they will accept up to two pulse inputs from other meters (water, gas, sewer, etc.) and communicate this information as two more data points. Accuracy meets or exceeds +/- 0.5%.
Kele Description
277/480V 400A JIC EZ-7 BACNET IP NO 2V OUTPUT
Manufacturer
E-Mon
Related Documents
H Series Installation Guide
