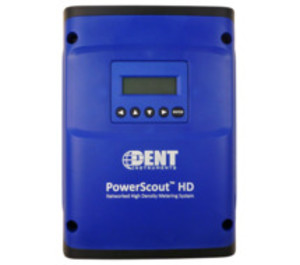

* product series image displayed

PS12HD-P-N-N | Dent Instruments | Power Monitoring & Protection

POWER METER, UP TO (4) THREE PHASE LOADS, POWERSCOUT MOUNTING PLATE /NO DISPLAY

Brand:Dent Instruments

MPN:PS12HD-P-N-N

SKU:PS12HD-P-N-N

List Price:

$2,623.50

Today's Price:

$1,364.22

catalog page

Lead time of 7 days. Chat with Kele experts now

product specifications

CT Inputs

Monitored Voltage

600 VAC

Monitored Current

4,000 A

Communication Protocol

BACnet,MODBUS

product series specifications

Communication: Modbus, BACnet

Connections: Pluggable screw terminals

Operating Temperature: -4° to 140°F

Operating Humidity: 5 to 95% RH (non-condensing)

Dimensions: 10.5" x 9.75" x 3.0"

Approvals: UL Listed (enclosure version), UL Recognized (board only), CE mark, ANSI C12.20 Class 0.2

Warranty: 5 years

product series features

12 channels: Multi-circuit submeter monitors voltage, current, power, energy, and many other electrical parameters on any combination of single and/or threephase systems Two independent voltage inputs allow the PowerScout HD meter to be used on two systems simultaneously Line-Powered: 90-600V Phase-to-Phase Power Supply Revenue grade. ANSI C12.20-2010 Class 0.2 Available with UL 94-V0 enclosure or as a circuit board to be mounted in an enclosure of your choice Mounting plate included on circuit board only version to help facilitate easy, safe installation Safe installation: High-Voltage Cover offers additional level of protection The PowerScout HD uses either BACnet or Modbus protocol and features 2 digital pulse output ports. All models feature both serial and Ethernet. Positive and negative Modbus registers/ BACnet objects allow for the PowerScout to be used on bi-directional metering projects Mix-and-match a full range of Split Core or RoCoil Rogowski-style CTs, including several revenue-grade options Display shows real-time information about the meter confguration and metered data PhaseChek™ conforms proper CT orientation UL Listed (enclosure version) or UL Recognized (circuit board only version) CE Mark

more information & related documents

Series Description

The PowerScout 12 is a versatile, multi-channel instrument. The modular design allows it to be confgured for monitoring multiple electrical circuits or for current-only monitoring of branch circuits. It can be supplied with any of DENT's internally-shunted split-core or RoCoil CTs. Monitor any combination of up to 16 three-phase or 12 single-phase electrical devices with a single PowerScout HD. With data updates every 1 second and ANSI C12.20-2010 Class 0.2 revenue grade accuracy (depending on CT), the PowerScout 12 HD is well-suited for data center monitoring, tenant submetering, and for accountability metering in commercial, retail, and industrial facilities.

Kele Description

POWER METER, UP TO (4) THREE PHASE LOADS, POWERSCOUT MOUNTING PLATE /NO DISPLAY

Manufacturer

Dent Instruments
