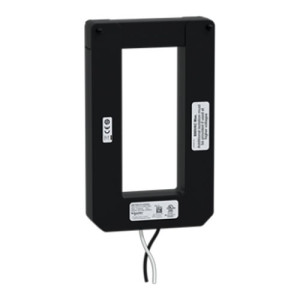

METSECTLV4080U | Veris | Power Monitoring & Protection

CT, SPLIT CORE, LARGE, 0.333V, 800A, UL2808

Brand:Veris

MPN:METSECTLV4080U

SKU:METSECTLV4080U

List Price:

$554.00

Today's Price:

$288.08

Lead time of > 15 days. Chat with Kele experts now

product series features

Multiple output choices for application flexibility
High accuracy: 1% from 10% to 100% of rated current
0.333V and 1VAC output versions available

more information & related documents

Series Description

The H681x-V series of 1 volt and 0.333 volt split-core current transducers provide secondary voltage AC proportional to the primary (sensed) current. For use with power meters, data loggers, chart recorders, and other instruments the H681x-V series 1 volt and 0.333 volt CTs provide a cost-effective means to transform electrical service amperages to a voltage compatible with monitoring equipment.These products provide basic insulation to 600VAC between the sensed conductor and the output leads. For reinforced applications, the sensed conductor must be provided with appropriate insulation. Reinforced insulation is provided for applications to 300VAC between the sensed conductor and the output leads.

Kele Description

CT, SPLIT CORE, LARGE, 0.333V, 800A, UL2808

Manufacturer

Veris
