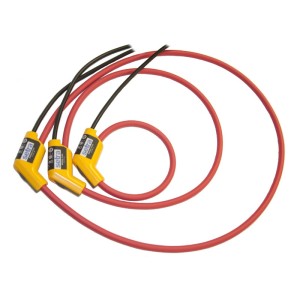

Three red flexible loop current transformers with yellow angled connectors and black pigtail leads labelled Setra

CT-PF-12 | Setra | Power Monitoring & Protection

12" PARTOL FLEX ROGOWSKI COIL ROPE CTS

Brand:Setra

MPN:CT-PF-12

SKU:CT-PF-12

List Price:

$464.88

Today's Price:

$241.74

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Core Type

Split

Amp Range

0-5000 A

Type

RO Coil

Connection

Wire Leads

Rated Current

6,000 A

product series specifications

See RELATED DOCUMENTS tab for Product Specifications:

product series features

Configure and Power Through USB
Rogowski Coil and Split Core CT Compatible
Field Selectable BACnet/Modbus (4-in-1)
Broadband Power Supply (80-600V)
Optional Display for Setup and Monitoring
ANSI C12.20-2010 Class 0.2
Bi-Directional
DIN- Mount

more information & related documents

Series Description

The Setra Power Patrol is a networked 3-phase power meter works with Rogowski Coils and has a small enough form factor to be mounted inside or outside of the panel using either mounting tabs or the DINrail clip making it very easy to install. Each Power Patrol comes with a field selectable Modbus or BACnet communication. Communications interface to the Power Patrol is through either an RS-485 serial connection (BACnet MS/TP / Modbus models) or over Ethernet (BACnet IP / Modbus TCP models).

Kele Description

12" PARTOL FLEX ROGOWSKI COIL ROPE CTS

Manufacturer

Setra
