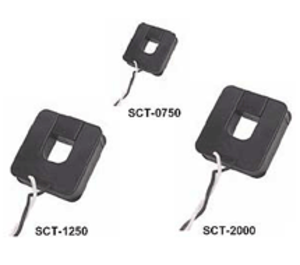

* product series image displayed

SCT-2000-800 | Magnelab | Power Monitoring & Protection

CT SPLIT,800:0.333V, 2X2 WINDW

Brand:Magnelab

MPN:SCT-2000-800

SKU:SCT-2000-800

List Price:

$183.00

Today's Price:

$95.16

catalog page

Lead time of 15 days. Chat with Kele experts now

product specifications

Type

Split Core

Output

0.333 V

Rated Current

800 A

Window Size

2 in

product series specifications

Primary Current: 5-3000A (see Ordering Information)

Secondary Voltage: 0-0.333 VAC, 0% to 100% rated current

Frequency: 50-400 Hz

Insulation Class: 600V

Accuracy: ±1%, (10% to 130% rated current)

Lead Wires: 8' (2.44m) twisted pair leads, 22 AWG

Weight: 1 lb (0.45Kg) maximum

Approvals: UL recognized component File #E96927 CE, RoHS

Warranty: 3 years

product series features

Millivolt output (0-0.333V)
Split-core design
Low-cost
No need for shorting switches

more information & related documents

Series Description

The Magnelab SCT Series of current transformers provides a low-voltage (0-0.333 V) output proportional to line current and is used in conjunction with the endicator™ and other meters to monitor electrical power systems. Often referred to as 'Safe CTs,' the mV output of these current transformers eliminates the need for shorting switches, and their split-core design makes them easy to install.

Kele Description

CT SPLIT,800:0.333V, 2X2 WINDW

Manufacturer

Magnelab
