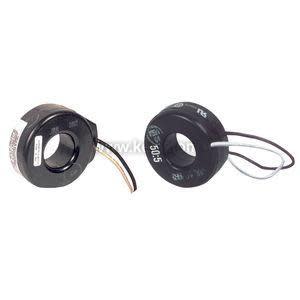

Two circular black current transformer rings with central hole and short wire leads

7RL301 | Kele | Power Monitoring & Protection

Current Transformer Solid Core 300:5 2.5 Window

Brand:Kele

MPN:7RL301

SKU:7RL301

List Price:

$152.00

Today's Price:

$79.04

product datasheet

catalog page

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

Solid Core

Output

5 A

Rated Current

300 A

Window Size

2.50 in

product series specifications

Secondary Current: 0-5A

Frequency: 50-400 Hz

Insulation Class: 600V, 10 kV BIL, Full Wave

Lead Wires: 24" (61 cm), 16 AWG

Materials Of Construction: Plastic, UL94V-1

Weight:

2RL 0.5 lb (0.23 Kg)

5RL 1.0 lb (0.45 Kg)

7RL 1.5 lb (0.63 Kg)

8RL 2.5 lb (1.2 Kg)

Approvals: UL-recognized component, File #E238872; CSA File #245941

Warranty: 1 year

product series features

5A secondary
Flexible leads are UL 1015 105 degreesC, CSA approved, #16 AWG, 24 in L (61 cm)
UL recognized components, CSA certified

more information & related documents

Series Description

The Electromagnetic Industries RL Series Solid-Core Current Transformers provide a low-amperage current output proportional to line current and are for use in building automation and metering applications. These low-cost current transformers are ideal as inputs to power monitors, such as the Endicator™ and current transducers, such as Models 4CTV and 4CMA.

Kele Description

CT SOLID 300:5 2.5 WIN

Manufacturer

Kele
