E10012 | Honeywell | Power Monitoring & Protection

Supply Voltage: Up to 600 VAC RMS available, 50/60Hz

Communication: Modbus RTU or TCP/IP, BACnet IP or MS/TP, LonWorks

Input:

Voltage Configuration: 3-wire (Delta) or 4-wire (WYE)

CT Input: 0-2 VDC current sensors included

Available CT's: 5 Amp - Up to 3200 Amp RMS AC available

Overload Rating:

Voltage Overload +25% continuously; +100% for 20 cycles

Current Sensor Overload 100% for 1 minute without damaging meter

Accuracy: Certified to ANSI C12.20

Range:

4 Wire Wye 115/208 VAC: 100, 200, 400, 800, 1600, 3200 Amp

4 Wire Wye 277/480 VAC: 100, 200, 400, 800, 1600, 3200 Amp

3 Wire Delta 220/240 VAC: 100, 200, 400, 800, 1600, 3200 Amp

3 Wire Delta 480 VAC: 100, 200, 400, 800, 1600, 3200 Amp

Operating Temperature:

NEMA 4 (Outdoor) Housing: -4° to 158°F (-20° to 70°C)

NEMA 1 (Indoor) Housing: -4° to 122°F (-20° to 50°C)

Operating Humidity: 0 to 95% RH (non-condensing)

Enclosure Rating:

Models with R: NEMA 4

Models without R: NEMA 12

Dimensions-Meter: 7.5"H x 7"W x 3.75"D (19.1 x 17.8 x 8.3 cm)

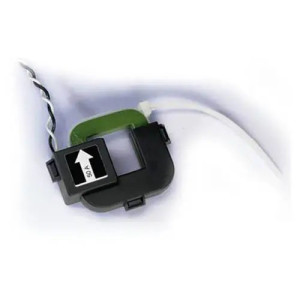

Dimensions-Current Sensors Interior Window:

100A and 200A: 7/8” x 1-1/2"

400A: 1-1/2" x 2-3/4"

800A and 1600A: 3-1/4" x 4-1/2"

3200A: 5-7/16" x 7-7/8"

Battery: Non-rechargeable cell used for memory retention

Working Voltage 3 Vdc

Current Capacity 22.5 mAHr

Approvals: UL File #E249361

Warranty: 1 year
