CS-650-50

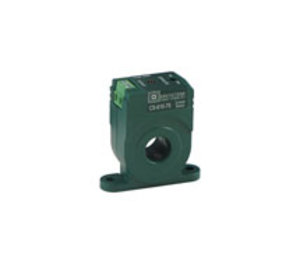

* product series image displayed

CS-650-50 | Greystone Energy Systems | Power Monitoring & Protection

CUR SENSOR MINI SOLID 0-50 AMPS 0-5 VDC OUT

Brand:Greystone Energy Systems

MPN:CS-650-50

SKU:CS-650-50

List Price:

$76.76

Today's Price:

$39.92



Availability: Usually Ships in Less Than 5 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product series specifications

    Frequency:
  • 50/60Hz
    Insulation Class:
  • 600VAC, Insolated Conductors
    Accuracy:
  • ±1% FSO
    Response Time:
  • <250 mS Typical, 0-90%
    Operating Temperature:
  • -15 to 60‚ÑÉ (5 to 140‚Ñâ)
    Operating Humidity:
  • 5 to 90% RH non-condensing
    Dimensions:
  • 1.9 x 1.93 x 0.83 in (48 x 49 x 21 mm)
    Enclosure Rating:
  • ABS/PC, UL94 V-0
    Sensor Power Source:
    :
  • CS-650, CS-651 Self-powered
    :
  • CS-652 Loop-powered
    Signal Output:
    :
  • CS-650 0-5VDC
    :
  • CS-651 0-10VDC
    :
  • CS-652 4-20mA

product series features

  • Small, compact housing
  • Solid Core
  • Analog Output
  • Up to 100 Amps input current

more information & related documents

Series Description

The CS-6XX-XX Series of mini-current sensors monitor line current for electrical loads such as pumps, conveyors, machine tools or fans and provide an output of 4-20 mA, 0-5 Vdc or 0-10 Vdc (Model specific) to represent the load current. The CS-650 &amp; CS-651 models require no external power supply as they are totally powered by induction from the AC line being monitored. The CS-652 series is loop-powered and require an external 15-30 Vdc power supply.

Kele Description

CUR SENSOR MINI SOLID 0-50 AMPS 0-5 VDC OUT

Manufacturer

Greystone Energy Systems

Related Documents

PDF - CS-6xx Mini Sensor DatasheetCS-6xx Mini Sensor Datasheet
