CT-SCM-0400-U-7M | Dent Instruments | Power Monitoring & Protection

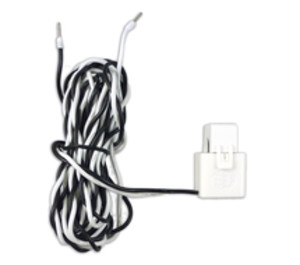

400A, MEDIUM SPLIT-CORE CT, 1.25IN WINDOW, 7M LEADS

Brand:Dent Instruments

MPN:CT-SCM-0400-U-7M

SKU:CT-SCM-0400-U-7M

List Price:

$-.--

Today's Price:

$-.--

product specifications

Type

Split Core

Output

0.333 V

Rated Current

400 A

Window Size

1.25 in

product series specifications

Current Range:

CT-HSC-020-U 0.25-40A AC

CT-HSC-050-U 0.25-80A AC

Frequency: 50-400 Hz

Working Voltage: 600 VAC, Category III

Lead Wires: 2.4 M (8'), 600V, 20 gage

Window Size: 0.4" (10 mm)

Materials Of Construction: White Nylon, UL 94 V-0

Weight: 0.22 lbs

Approvals: UL STD 61010-1, CAN/CSA STD C22.2 No. 61010-1

Warranty: 1 year

product series features

Small, lowcost current transformers with high accuracy
Limited space solution
UL recognized component, CE Mark

more information & related documents

Series Description

The Dent Instruments CT-HSC Series are hinged Mini CTs. They are small, low cost current transformers with high accuracy ( less than 0.5%) over a wide dynamic range with excellent phase shift. The Minis are ideal where space is limited such as when metering multiple loads within a panel board. Use for current measurement, energy metering, load surveys, demand metering, energy research, and submetering.

Kele Description

400A, MEDIUM SPLIT-CORE CT, 1.25IN WINDOW, 7M LEADS

Manufacturer

Dent Instruments
