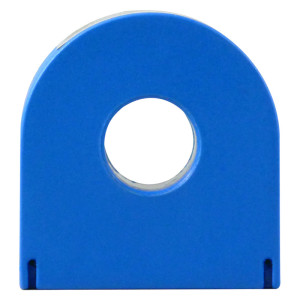

CT-RGT12-0050-U | Dent Instruments | Power Monitoring & Protection

50A SOLID-CORE, 0.5" (12.8MM) OPENING

Brand:Dent Instruments

MPN:CT-RGT12-0050-U

SKU:CT-RGT12-0050-U

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

product specifications

Type

Solid Core

Output

0.333 V

Rated Current

50 A

Window Size

0.5 in

product series specifications

Current Range:

5A Model 0.05 - 10A AC

20A Model 0.2 - 40A AC

50A Model 0.5 - 100A AC

100A Model 1.0 - 200A AC

Frequency: 50 to 400 Hz

Working Voltage: 600 VAC, Category III

Lead Wires: 2.4 M (8'), twisted pair, 24 AWG, 600V rated

Window Size: 0.5" (12.8mm)

Materials Of Construction: PBT resin, UL 94V-0, epoxy encapsulated

Weight: 0.75 lbs

Approvals: Conforms to: UL STD 61010-1 EN 60044-1, Certified to: CAN/CSA STD C22.2 No. 61010-1

Warranty:.1 year

product series features

Superior Performance
Robust design
Unique shrouded snap, lock and tilt top

more information & related documents

Series Description

The Dent Instruments CT-RGT Series are designed for applicatons where an AC current signal must be transformed into lower AC current or voltage signal appropriate for micro-processor based circuits. This series of CTs is designed specifcally for integraton into products which require exceptonally accurate signal transformaton with low phase shif while exposed to harsh environmental operatng conditons.

Kele Description

50A SOLID-CORE, 0.5"

Manufacturer

Dent Instruments
