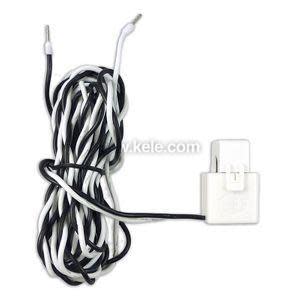

White sensor block with long twisted black and white leads.

CT-HSC-020-U | Dent Instruments | Power Monitoring & Protection

20A, MINI HINGED SPLIT CORE CT, 0.4IN WINDOW, 3M LEADS

Brand:Dent Instruments

MPN:CT-HSC-020-U

SKU:CT-HSC-020-U

List Price:

$60.59

Today's Price:

$31.51

product datasheet

installation instructions

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

Split Core

Output

0.333 V

Rated Current

20 A

Window Size

0.4 in

product series specifications

Current Range:

CT-HSC-020-U 0.25-40A AC

CT-HSC-050-U 0.25-80A AC

Frequency: 50-400 Hz

Working Voltage: 600 VAC, Category III

Lead Wires: 2.4 M (8'), 600V, 20 gage

Window Size: 0.4" (10 mm)

Materials Of Construction: White Nylon, UL 94 V-0

Weight: 0.22 lbs

Approvals: UL STD 61010-1, CAN/CSA STD C22.2 No. 61010-1

Warranty: 1 year

product series features

Small, lowcost current transformers with high accuracy
Limited space solution
UL recognized component, CE Mark

more information & related documents

Series Description

The Dent Instruments CT-HSC Series are hinged Mini CTs. They are small, low cost current transformers with high accuracy ( less than 0.5%) over a wide dynamic range with excellent phase shift. The Minis are ideal where space is limited such as when metering multiple loads within a panel board. Use for current measurement, energy metering, load surveys, demand metering, energy research, and submetering.

Kele Description

20A, MINI HINGED SPLIT CORE CT, 0.4IN WINDOW, 3M LEADS

Manufacturer

Dent Instruments
