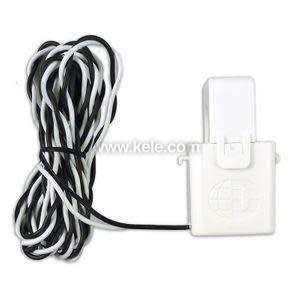

Small white rectangular sensor module with a long coil of intertwined black and white wire attached.

CT-HMC-0100-U | Dent Instruments | Power Monitoring & Protection

100A, MINI HINGED SPLIT CORE CT, 1IN WINDOW, 3M LEADS

Brand:Dent Instruments

MPN:CT-HMC-0100-U

SKU:CT-HMC-0100-U

List Price:

$155.00

Today's Price:

$80.60

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Split Core

Output

0.333 V

Rated Current

100 A

Window Size

1 in

product series specifications

Current Range:

CT-HSC-0100-U 1-200A AC

CT-HSC-0200-U 1-300A AC

Frequency: 50-400 Hz

Working Voltage: 600 VAC, Category III

Lead Wires: 2.4 M (8'), 600V, 20 gage

Window Size: 1.0" (25 mm)

Materials Of Construction: White Nylon, UL 94 V-0

Weight: 0.50 lbs

Approvals: UL STD 61010-1, CAN/CSA STD C22.2 No. 61010-1

Warranty: 1 year

product series features

High Performance
Medium Amperage
Hinged Current Transformer
UL recognized component, CE Mark

more information & related documents

Series Description

The Dent Instruments CT-HMC Series are hinged Mini CTs. The hinged Midi CTs are high performance, medium amperage, hinged current transformers. Use for current measurement, energy metering, load surveys, demand metering, energy research, and submetering.

Kele Description

100A, MINI HINGED SPLIT CORE CT, 1IN WINDOW, 3M LEADS

Manufacturer

Dent Instruments
