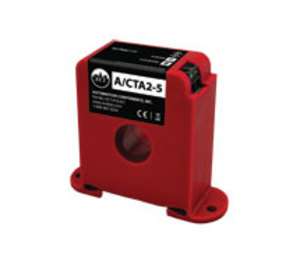

A/CTA-250-VFD | ACI | Power Monitoring & Protection

SOLID CURRENT TRANS 0-100/200/250A TO 4-20MA VFD

Brand:ACI

MPN:A/CTA-250-VFD

SKU:A/CTA-250-VFD

List Price:

$-.--

Today's Price:

$-.--

catalog page

product series specifications

Supply Voltage: 12 to 30 VDC (mA output only)

Frequency: 15 Hz to 200 Hz

Output:

A/CTA, A/SCTA 4-20 mA @ 700Ω 2-wire, loop-powered (36 mA max)

A/CTE, A/SCTE 0-5 VDC

A/CTV, A/SCTV 0-10 VDC

Maximum Sensing Current Voltage: 600 VAC

Insulating Class: 2200 VAC

Accuracy: ±2% MAX.

Operating Temperature:

5° to 104°F (-15° to 40°C)

VFD models 32° to 104°F (0° to 40°C):

Operating Humidity: 0 to 95% (non-condensing)

Enclosure Rating: NEMA 1, UL94-5VB

Mounting: DIN rail size 35 mm

Window Size: -0.75", accepts up to 350 MCM cables

Weight: 0.24 lbs (0.11 Kg)

Approvals: UL File #E309723, CE (not the VFD models), RoHs

Warranty: 5 years, limited

product series features

Available in solid-core or split-core
5 VDC, 10 VDC or 4-20mA outputs
Voltage output models are self-powered
Integral DIN rail mount
True RMS versions for VFD applications
Jumper slectable ranges

more information & related documents

Series Description

The A/CT and A/SCT Series current transducers with current sensors monitor the current flowing to electrical equipment. The magnitude of the analog output signal is proportional to the current flow through the wire. The A/CT series transducer offers solid-core sensors with 4-20mA, 0-5 volt DC, or 0-10 volt DC outputs. The A/SCT series offers split-core sensors for retrofit applications with the same available outputs. Sensors are available with various input current ranges from 5 to 250 amps for a wide range of building automations systems, BAS, needs. True RMS models make monitoring of VFD applications a snap.

Kele Description

SOLID CURRENT TRANS 0-100/200/250A TO 4-20MA VFD

Manufacturer

ACI
