H723HC | Veris | Power Monitoring & Protection

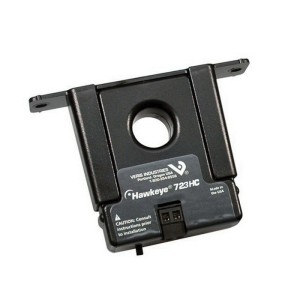

Current Transducer, 0-50/100/200A, Solid Core, 0-10V Out
Brand:Veris
MPN:H723HC
SKU:H723HC
List Price:
$159.00
Today's Price:
$82.68
Log in for customized pricingproduct specifications
Type
Solid Core
Connection
Terminals
Output
0 - 10 VDC
Analog Output
0 - 10 VDC
Window Size
0.8 in
Current Range
0 - 200 A
product series features
- Self-powered analog current sensor 0-10VDC outputSelf-gripping split-core for fast retrofit installation... no need to remove conductor (H923)
- No jumpers on unit... reduces installation error
- No external power required for sensor
- Factory calibrated for ease of installationFactory calibrated field-selectable ranges for high resolution and installation ease
- One device to stock and install... reduces installation charges
- Removable mounting bracket for installation flexibility
- 100% solid state, no moving parts to fail
- 5-year limited warranty
more information & related documents
Series Description
The Hawkeye 723/923 Series provide accurate load trending information with a proportional 0-10VDC output signal. Devices offer three amperage range options, with a slide-switch selection for easy field adjustment (no need for jumpers)
Kele Description
CURR XDUCR, 0-50/100/200A, SOLID CORE, 0-10V OUT
Manufacturer
Veris
Related Documents
Hawkeye 723 923 Datasheet
