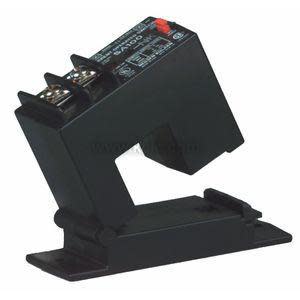

SC200-1-V | NK Technologies | Power Monitoring & Protection
Current Transducer Range, 0–10, 0–20, 0–50A, VFD Load, Split Core
Brand:NK Technologies
MPN:SC200-1-V
SKU:SC200-1-V
List Price:
$314.00
Today's Price:
$163.28
Log in for customized pricingproduct specifications
Core Type
Split
Type
SPLIT
Connection
Terminals
Output
4 - 20 mA
Analog Output
0 - 5 VDC
Window Size
0.85 in
Current Range
0 - 50 A
product series specifications
Output Signal: 0–5VDC, 0–10VDC, 4–20mA (see Ordering Info)
Accuracy: 0–5/10VDC: 1% FS over 5–100% of range
4–20mA: 0.5% FS
Response Time, 0-90%:
0–5/10VDC: 100 mS
4–20mA: 300 mS
Frequency Range:
0–5/10VDC: 50–60Hz
4–20mA w/o VFI: 20–100Hz
4–20mA w/ VFI: 10–400Hz
Power Supply:
0–5/10VDC: Self-powered
4–20mA: 12–40VDC, Loop-powered
Output Load, 0–5/10VDC 1 Megohm required for rated accuracy 100K Ohm Load, add 1.3% error
Output Load, 4–20mA:
950 ohms max @ 24 VDC
Rmax = (Vsupply-5) / 0.020A
Output Signal Limit: 2x rated output
Isolation Voltage: UL listed to 1270 VAC, tested to 5kV
Input Ranges: Field Selectable Ranges from 0–200A (see Ordering Info)
Sensing Aperture:Solid core: 0.75" dia. Split core: 0.85" sq.
Case: UL 94V-0 Flammability rated thermoplastic
Environmental:
0–5/10VDC: –58/149° (–50/65°C)
4–20mA: –4/122°F (–20/50°C)
For all: 0–95% RH, non-condensing
Approvals: UL, ULC, CE
product series features
- May eliminate the need for a current transformer
- Small size
- Loop powered
- Easily installed over existing cable with split-core design
- UL listed, CE certified
more information & related documents
Series Description
The Sentry 200 Series AC Current Transducers can be used to directly monitor up to 200A and output a 04-20 mA signal. The Sentry 200 Series is available in a split-core design that allows for easy installation of the transducer on existing wiring or in a lower-cost solid-core version.
Kele Description
0/50AMP CURRENT TRANSDUCER
Manufacturer
NK Technologies
Related Documents
Sentry 100-200 Series Datasheet
