200-3-A

200-3-A | NK Technologies | Power Monitoring & Protection

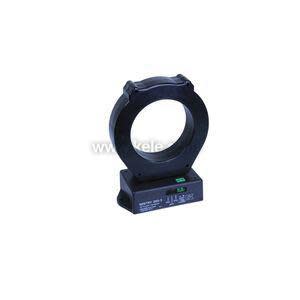

Solid-Core High Current Transducer, 0-750A, 4-20 mA Output

Brand:NK Technologies

MPN:200-3-A

SKU:200-3-A

List Price:

$657.00

Today's Price:

$341.64



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Type

SOLID

Current Range

0-750 A

Analog Output

4-20 mA

Window Size

3 in

product series specifications

    Supply Voltage:
  • 24 - 40 VDC
    Frequency:
  • 50 - 60 Hz
    :
  • V Models 10 - 400 Hz
    Output:
  • 4 - 20 mA, loop-powered
    Output Impedance:
  • 600‚Ѷ max @ 24 VDC
    Insulation Voltage 600 VAC:
    Accuracy:
  • 1.0% FS
    Response Time:
  • 500 ms to 90% of step change
    Overrange Limit:
  • Sensor self-limits to 25 mA output
    Terminations:
  • Screw terminals
    Materials Of Construction:
  • UL 94 flammability rated thermoplastic
    Weight:
  • 1.3 lb (0.6 Kg)
    Approvals:
  • UL File #E129625, CE pending
    Warranty:
  • 5 years

product series features

  • Eliminates the need for a current transformer
  • Large aperture to accommodate large conductors or wire bundles
  • Loop powered 4-20 mA output
  • Multi-range input eliminates zero and span adjustments
  • Easy installation with integral mounting brackets

more information & related documents

Series Description

The Sentry 200-A Series high AC current transducers with current output can directly monitor up to 2000A without requiring an additional current transformer. Ideal for many applications in building automation systems, BAS, these transducers have an 4-20 mA signal output.

Kele Description

CURRENT TO CURRENT TRANSDUCER

Manufacturer

NK Technologies

Related Documents

PDF - NK Technologies 100 200 SeriesNK Technologies 100 200 Series
PDF - NK Technologies 200 3 4 SeriesNK Technologies 200 3 4 Series
