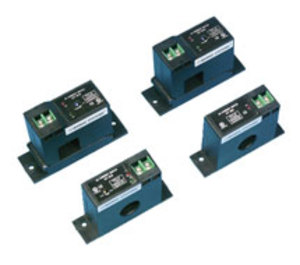

* product series image displayed

CU-880 | MAMAC Systems | Power Monitoring & Protection

SOLID CORE; 4 TO 20 MA OP; 100/150/200 AMPS

Brand:MAMAC Systems

MPN:CU-880

SKU:CU-880

List Price:

$171.00

Today's Price:

$88.92

catalog page

Lead time of 10 days. Chat with Kele experts now

product series specifications

Supply Voltage: Self-powered

Isolation Voltage: 1000 VAC

Frequency: 45/65 Hz

Insulation Class: 1000 VAC

Adjustable Setpoint: 1.0 to 200 Amps

Fixed Setpoint: 0.5 Amp

Max. Switching Current: 1.0 Amp @ 35 VAC/VDC; 0.35 Amp @ 135 VAC/VDC

Operating Temperature: 32° to 158°F (0° to 70°C)

Operating Humidity: 10-90% RH, non-condensing

Enclosure Rating: NEMA 1

Mounting: foot

Window Size: 0.75 inch

Weight: 0.25 lb (0.11 Kg)

Approvals: UL Listed #E330761, CE, RoHS

Warranty: 1 year

product series features

Available in solid or split-core for ease of installation
Fixed or adjustable set point
LED indication for load status and current flow
Switch output is rated for up to 135 VAC/VDC

more information & related documents

Series Description

The MAMAC Systems CT-800/805/810/815 Series are solid-state switches that operate when the AC current level sensed by the internal current transformer exceeds a fixed or adjustable trip point. Internal circuits are totally powered by induction from the conductor being monitored. There is zero off-state leakage current in the solid-state relay output that can switch AC or DC circuits. The CT-800 & 810 models are solid core while the CT-805 & 815 models are split core.

Kele Description

SOLID CORE; 4 TO 20 MA OP; 100/150/200 AMPS

Manufacturer

MAMAC Systems
