SCX42050-VFD | Kele | Power Monitoring & Protection

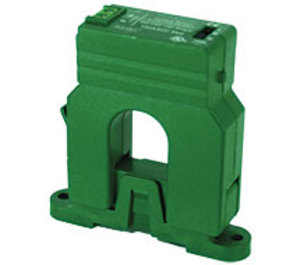

CURR XDUCR, 0-10/20/50A,SPLIT CORE,4-20MA OUT,VFD

Brand:Kele

MPN:SCX42050-VFD

SKU:SCX42050-VFD

List Price:

$163.00

Today's Price:

$84.76

catalog page

product specifications

Type

SPLIT CORE

Analog Output

4 - 20 mA

Window Size

0.8 in

Current Range

0 - 50 A

product series specifications

Measurement Range:

SCX42002-VFD 0-2 Amps

SCX42005-VFD 0-5 Amps

SCX42050-VFD 0-10/20/50 Amps - jumper selectable

SCX420150-VFD 0-50/100/150 Amps - jumper selectable

SCX420200-VFD 0-200 Amps

Maximum Current Draw:

SCX42002-VFD 10 Amps Continuous

SCX42005-VFD 15 Amps Continuous

SCX42050-VFD 100 Amps Continuous

SCX420150-VFD 150 Amps Continuous

SCX420200-VFD 200 Amps Continuous

Accuracy: ± 2% FSO (5-100% of range)

Signal Output: 4-20 mA @ 250Ω

Sensor Power: 15 to 30 VDC (loop-powered)

Insulation Class: 600 VAC, insulated conductors

Frequency: 20-400 Hz

Response Time: 500 mS typical, 0-90%

Maximum Load: >600Ω max. @ 24 VDC

Operating Temperature: 5° to 122°F (-15° to 50°C)

Operating Humidity: 5-90% RH, non-condensing

Terminal Block: 14 to 22 AWG

Dimensions: 2.6" x 2.65" x 0.98" (6.6 x 6.73 x 2.49 cm)

Sensor Size: 0.8" (2.03 cm)

Enclosure Material: ABS/PC, UL94 V-0

Approvals: UL File #E339785, RoHS, ISO9001, CE

product series features

True RMS for complex waves
Input / output isolation via current transformer
Solid-state reliability
Small compact size
Solid, reliable mounting method

more information & related documents

Series Description

The Kele SCX-VFD Series current transducers monitor line current for electrical loads such as pumps, conveyors, machine tools, or fans and output an anolog signal to represent the load current. The SCX-VFD Series is loop-powered and requires 15 to 30 VDC to power the device. The SCX-VFD Series features True RMS current measurement suitable to measure complex waveforms such as those found in VFD controlled loads. They are also suitable for accurate measurement of phase angled controlled or time proportional SCR controlled load currents. The SCX-VFD Series current sensors contain a precision RMS-to-DC converter circuit which will measure load current accurately for complex, distorted or noisy waveforms as opposed to in.average reading in. devices that will only accurately measure pure sine waveforms.

Kele Description

CURR XDUCR, 0-10/20/50A,SPLIT CORE,4-20MA OUT,VFD

Manufacturer

Kele
