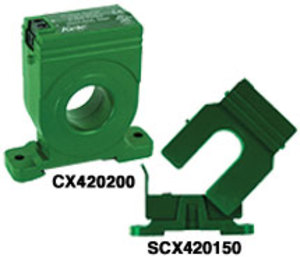

* product series image displayed

SCX420200 | Kele | Power Monitoring & Protection

CURR XDUCR, 0-200A, SPLIT CORE, 4-20MA OUT

Brand:Kele

MPN:SCX420200

SKU:SCX420200

List Price:

$170.00

Today's Price:

$88.40

catalog page

product specifications

Type

SPLIT CORE

Analog Output

4 - 20 mA

Window Size

0.8 in

Current Range

0 - 200 A

product series specifications

Supply Voltage: 15-30 VDC

Frequency:

CX: 40-100 Hz

SCX: 50-100 Hz

Measurement Range: Up to 200 Amps

Accuracy:

CX:

±2% FSO (5-100% of range)

SCX:

± 2% FSO (10-100% of range)

Signal Output: 4-20 mA @ 250Ω

Insulation Class: 600 VAC, insulated conductors

Response Time: 250 mS typical, 0-90%

Operating Temperature: 5° to 140°F (-15° to 60°C)

Operating Humidity: 5-90% RH, non-condensing

Terminals: 14 to 22 AWG

Enclosure Rating: NEMA 1, ABS/PC, UL94 V-0

Mounting: Foot

Dimensions:

CX:

2.65"H x 2.6"W x 0.98”D (6.7 x 6.6 x 2.49 cm)

SCX:

3.05"H x 3.0"W x 0.98"D (7.75 x 7.6 x 2.5 cm)

Window Size: 0.8" (2.03 cm)

Weight: 0.25 lb (0.11 Kg)

Approvals: UL File #E339785

Warranty: 5 years

product series features

May eliminate the need for a current transformer
Small size
Loop powered
Easily installed over existing cable with split-core design
UL listed, CE certified

more information & related documents

Series Description

The Kele CX/SCX Series AC current transducers can be used to directly monitor up to 200 amps and output a 4-20 mA signal. Engineered for building automation systems, BAS, the transducer is available in a split-core design that allows for easy installation on the existing wiring or in a lower cost solid-core version.

Kele Description

CURR XDUCR, 0-200A, SPLIT CORE, 4-20MA OUT

Manufacturer

Kele
