SCX05V50

SCX05V50 | Kele | Power Monitoring & Protection

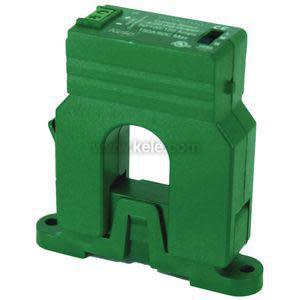

Current Transducer, 0-10/20/50A, Split Core, 0-5VDC Out

Brand:Kele

MPN:SCX05V50

SKU:SCX05V50

List Price:

$125.00

Today's Price:

$65.00



Availability: 139 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

SPLIT CORE

Current Range

0-50 A

Analog Output

0-5 VDC

Window Size

0.8 in

product series specifications

    Frequency:
    CX:
  • 40-100 HZ
    SCX:
  • 50-100 Hz
    Measurement Range:
  • Up to 200 Amps
    Output:
  • 0-5 VDC or 0-10 VDC @ 1 M‚Ѷ typical
    Insulation Class:
  • 600 VAC, insulated conductors
    Response Time:
  • 200 ms typical, 0-90%
    Accuracy:
    CX:
  • ± 2% FSO (5-100% of range)
    SCX:
  • ± 2% FSO (10-100% of range)
    Operating Temperature:
  • 5° to 140°F (-15° to 60°C)
    Operating Humidity:
  • 5-90% RH, non-condensing
    Enclosure Rating:
  • NEMA 1, ABS/PC, UL94 V-0
    Window Size:
  • 0.8‚Ä= (2.03 cm)
    Termination:
  • 14 to 22 AWG
    Dimensions:
    CX:
  • 2.65‚Ä=H x 2.6‚Ä=W x 0.98‚Ä=D (6.7 x 6.6 x 2.5 cm)
    SCX:
  • 3.05‚Ä=H x 3.0‚Ä=W x 0.98‚Ä=D (7.8 x 7.6 x 2.5 cm)
    Weight:
  • 0.25 lb (0.11 kg)
    Approvals:
  • UL File #E339785, CE
    Warranty:
  • 5 years

product series features

  • May eliminate the need for current transformers
  • Small size
  • No power supply needed
  • Split-core model easily installed over existing cable
  • UL listed, CE certified

more information & related documents

Series Description

The Kele CX/SCX Series AC current transducer with voltage output can be used to directly monitor up to 200A and output a 0-5 or 0-10 volt DC signal. Well suited to building automation systems, BAS, the transducer is available in a split-core design that allows for easy installation on the existing wiring or in a lower cost solid-core version.

Kele Description

CURR XDUCR, 0-10/20/50A, SPLIT CORE, 0-5VDC OUT

Manufacturer

Kele
