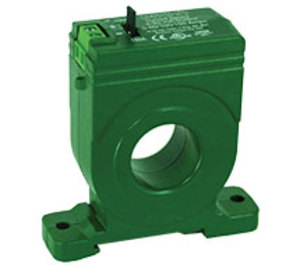

CX420150-VFD | Kele | Power Monitoring & Protection
CURR XDUCR,0-50/100/150A,SOLID COR,4-20MA OUT,VFD
Brand:Kele
MPN:CX420150-VFD
SKU:CX420150-VFD
List Price:
$89.89
Today's Price:
$46.74
Log in for customized pricingproduct specifications
Type
SOLID CORE
Analog Output
4 - 20 mA
Window Size
0.8 in
Current Range
0 - 150 A
product series specifications
Supply Voltage: 15 to 30 VDC (loop-powered)
Frequency: 20-400 Hz
Accuracy: ± 2% FSO (5-100% of range)
Insulation Class: 600 VAC, insulated conductors
Response Time: 500 mS typical, 0-90%
Operating Temperature: 5° to 122°F (-15° to 50°C)
Operating Humidity: 5-90% RH, non-condensing
Enclosure Rating: ABS/PC, UL94 V-0
Mounting: foot
Termination: 14 to 22 AWG
Dimensions: 2.6" x 2.65" x 0.98" (6.6 x 6.73 x 2.49 cm)
Window Size: 0.8" (2.03 cm)
Approvals: cULus Listed, RoHS, ISO9001, CE
Warranty: 1 year
product series features
- True RMS for complex waves
- Input / output isolation via current transformer
- Solid-state reliability
- Small compact size
- Solid, reliable mounting method
more information & related documents
Series Description
The Kele CX-VFD Series current transducers monitor line current for electrical loads such as pumps, conveyors, machine tools, or fans and output an anolog signal to represent the load current. The CX-VFD Series is loop-powered and requires 15 to 30 VDC to power the device. The CX-VFD Series features True RMS current measurement suitable to measure complex waveforms such as those found in VFD controlled loads. They are also suitable for accurate measurement of phase angled controlled or time proportional SCR controlled load currents. The CX-VFD Series current transducers contain a precision RMS-to-DC converter circuit which will measure load current accurately for complex, distorted or noisy waveforms as opposed to in.average reading in. devices that will only accurately measure pure sine waveforms.
Kele Description
CURR XDUCR,0-50/100/150A,SOLID COR,4-20MA OUT,VFD
Manufacturer
Kele
Related Documents
CX-VFD Installation Instructions
