CX42002-VFD | Kele | Power Monitoring & Protection

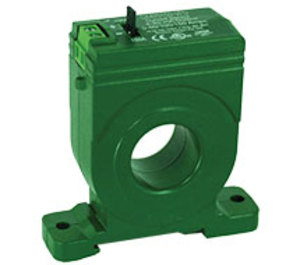

CURR XDUCR, 0-2A, SOLID CORE, 4-20MA OUT, VFD

Brand:Kele

MPN:CX42002-VFD

SKU:CX42002-VFD

List Price:

$123.00

Today's Price:

$63.96

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

SOLID CORE

Analog Output

4 - 20 mA

Window Size

0.8 in

Current Range

0 - 2 A

product series specifications

Supply Voltage: 15 to 30 VDC (loop-powered)

Frequency: 20-400 Hz

Measurement Range:

CX42002-VFD 0-2 Amps

CX42005-VFD 0-5 Amps

CX42050-VFD 0-10/20/50 Amps - jumper selectable

CX420150-VFD 0-50/100/150 Amps - jumper selectable

CX420200-VFD 0-200 Amps

Maximum Current Draw:

CX42002-VFD 10 Amps Continuous

CX42005-VFD 15 Amps Continuous

CX42050-VFD 100 Amps Continuous

CX420150-VFD 150 Amps Continuous

CX420200-VFD 200 Amps Continuous

Accuracy: ± 2% FSO (5-100% of range)

Insulation Class: 600 VAC, insulated conductors

Response Time: 500 mS typical, 0-90%

Operating Temperature: 5° to 122°F (-15° to 50°C)

Operating Humidity: 5-90% RH, non-condensing

Enclosure Rating: ABS/PC, UL94 V-0

Mounting: foot

Termination: 14 to 22 AWG

Dimensions: 2.6" x 2.65" x 0.98" (6.6 x 6.73 x 2.49 cm)

Window Size: 0.8" (2.03 cm)

Approvals: cULus Listed, RoHS, ISO9001, CE

Warranty: 1 year

product series features

True RMS for complex waves
Input / output isolation via current transformer
Solid-state reliability
Small compact size
Solid, reliable mounting method

more information & related documents

Series Description

The Kele CX-VFD Series current transducers monitor line current for electrical loads such as pumps, conveyors, machine tools, or fans and output an anolog signal to represent the load current. The CX-VFD Series is loop-powered and requires 15 to 30 VDC to power the device. The CX-VFD Series features True RMS current measurement suitable to measure complex waveforms such as those found in VFD controlled loads. They are also suitable for accurate measurement of phase angled controlled or time proportional SCR controlled load currents. The CX-VFD Series current transducers contain a precision RMS-to-DC converter circuit which will measure load current accurately for complex, distorted or noisy waveforms as opposed to in.average reading in. devices that will only accurately measure pure sine waveforms.

Kele Description

CURR XDUCR, 0-2A, SOLID CORE, 4-20MA OUT, VFD

Manufacturer

Kele
