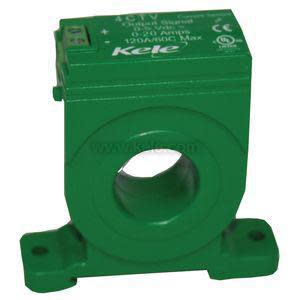

Current Transducer 0-20/0-5V
Brand:Kele
MPN:4CTV
SKU:4CTV
List Price:
$108.00
Today's Price:
$56.16
product specifications
Connection
Terminals
Output
0-5 VDC
Type
SOLID
Core Type
Solid
Current Range
0-20 A
Analog Output
0-5 VDC
Window Size
0.8 in
product series specifications
- Signal Output:
- :
- 4CMA 4-20mA
- :
- 4CTV 0-5 VDC
- Sensor Power:
- :
- 4CMA 15-30 VDC (loop powered)
- :
- 4CTV Self-powered
- Measurement Range:
- 0-20 Amps
- Max Input Current:
- 120 Amps Continuous
- Insulation Class:
- 600V, insulated conductors
- Frequency:
- 50/60 Hz
- Response Time:
- :
- 4CMA 200 ms Typical, 0-90%
- :
- 4CTV 250 ms Typical, 0-90%
- Output Load:
- :
- 4CMA 1 MΩ Typical
- :
- 4CTV 250Ω Typical
- Accuracy:
- ±2% FSO (5-100% of range)
- Operating Temperature:
- 5 to 140‚Ñâ (-15 to 60‚ÑÉ)
- Operating Humidity:
- 5 to 90% RH non-condensing
- Terminal Block:
- 14 to 22 AWG
- Enclosure Rating:
- NEMA 1
- Dimensions:
- 2.65‚Ä= x 2.7‚Ä= x 0.95‚Ä= (67 x 68.6 x 24.1mm)
- Sensor Aperture:
- 0.8‚Ä= (20.3 mm)
- Enclosure Material:
- ABS/PC, UL94 V-0
- Approvals:
- cULus Listed
- Warranty:
- 1 year
product series features
- 4CTV requires no external power supply
- Rugged design to withstand momentary AC inrushes of 120A (6x rating)
- Easy to install, only two connections
- 50/60 Hz operation
more information & related documents
Series Description
Models 4CTV and 4CMA AC current transducers are AC amperage-to-analog DC transducers. Either current transducer can be used to directly monitor loads of up to 20A. For loads of 20-5000A, an external current transformer can be used. Developed for energy management and building automation systems, BAS, the Model 4CTV transducer converts an AC current to a 0-5 volt DC current. The Model 4CMA transducer converts an AC current to a 4-20 mA current that can be monitored by any processor that accepts analog DC voltage or current.
Kele Description
CURRENT TRANSDUCER 0-20/0-5V
Manufacturer
Kele
Related Documents
4CMA_Install
