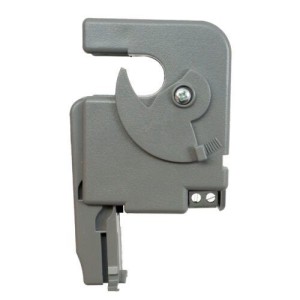

RIBXGT420-RMS | Functional Devices | Power Monitoring & Protection

CURRENT TRANSDUCER W/LOOP PWR 4-20 MA OTPT

Brand:Functional Devices

MPN:RIBXGT420-RMS

SKU:RIBXGT420-RMS

List Price:

$242.00

Today's Price:

$125.84

product datasheet

catalog page

Lead time of 11 days. Chat with Kele experts now

product specifications

Type

Split-Core

Connection

Terminal Strip

Contact Form

Solid State

Current Range

0.125 - 150 A

Trip Point Type

SPST

Mount

Tab

product series specifications

Operating Temperature: -30 to 140° F

Humidity Range: 5 to 95% (non-condensing)

Max Sense Voltage: 600 Vac

Approvals: UL Listed, C-UL, CE, RoH, UL916, S (All models)

UL864, California State Fire Marshal (RIBXKTF, RIBXKTA)

Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire

being monitored, securing the unit in place.

Sensor Contact Output: Current below threshold: Open; Current above threshold: Closed

Origin: Made of US and non-US parts

Sensor Contact: Solid State Contact

- When sensor contact is off (open), leakage <30 uA @ 30Vac/dc.

- When sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp

< 1.6 Vac/dc @ .4 Amp

product series features

Solid- and split-core switch models have fixed (go/no go) or adjustable trip points
Solid-core transducer models have a 4-20 mA output
Low cost
Ratcheting cam clamp to secure switch to wire
Removable mounting tab

more information & related documents

Series Description

The Functional Devices RIBXK, RIBXG, RIBXK420 Series include both current-operated switches and current transducers. Solid-core and split-core current-operated switch models have a solid-state switch that operates when the current level sensed by the internal current transformer exceeds a fixed or adjustable set point. Solid-core current transducer models output a 4-20 mA signal proportional to the line current being monitored.

Kele Description

ENCLOSED SPLIT-CORE AC SENSOR, 0-10/20/50AMP, 4-20MA, TERMINAL, TRUE RMS

Manufacturer

Functional Devices
