CCT40-102 | Dwyer Instruments | Power Monitoring & Protection

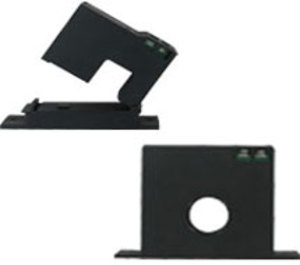

CURRENT TRANSFORMER, 10/20/50 A INPUT, 0-5 V OUTPUT, SPLIT CORE
Brand:Dwyer Instruments
MPN:CCT40-102
SKU:CCT40-102
List Price:
$127.00
Today's Price:
$66.04
Log in for customized pricingproduct specifications
Type
SPLIT CORE
Analog Output
0 - 5 VDC
Window Size
0.8 in
Current Range
0 - 50 A
product series specifications
Amperage Range: Field selectable; up to 200 A (depending on model)
Output: 0 to 5 V, 0 to 10 V, or 4 to 20 mA (depending on model)
Power Requirements: Self-powered or 15 to 42 VDC loop powered (depending on model)
Accuracy: 1%
Temperature Limits: -22 to 158°F (-30 to 70°C)
Humidity Limits: 0 to 95% (non-condensing)
Response Time: 250 ms to 90%
Isolation Voltage: 2000 V
Frequency: 10 to 400 Hz
Enclosure Rating: UL 94 V-0 flammability rated, ABS plastic housing
Approvals: CE, cULus
Warranty: 5-year limited
product series features
- Integral mounting flange for quick installation
- Solid core or split core configurations
- Jumper selectable range
more information & related documents
Series Description
The Dwyer CCT40/50 Series Current Transformers are a low cost alternative for measuring power and monitoring the operation of fans, pumps, or other equipment. For use on existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges and a choice of three different outputs. The Dwyer CCT60/70 Series True RMS Current Transformers are a low cost alternative for providing true RMS outputs on distorted AC waveforms. True RMS outputs are ideal for nonlinear loads or noisy circuits. For existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges to reduce the risk of ordering the wrong model.
Kele Description
CURR XFMR, 10/20/50 A INPUT, 0-5 V, SPLIT
Manufacturer
Dwyer Instruments
Related Documents
CCT40_50 Data Sheet
