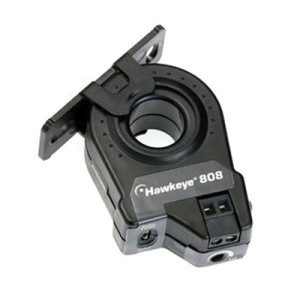

H808 | Veris | Power Monitoring & Protection
Current Switch, 0.75-50A, Adjustable, Solid Core, LED
Brand:Veris
MPN:H808
SKU:H808
List Price:
$132.00
Today's Price:
$68.64
product specifications
Connection
Terminals
Mounting
Solid Core
Output
N.O.
Core Type
Solid
Set Point Type
Adj.
Current Range
.75-50 A
Trip Point Type
Adjustable
product series specifications
- Supply Voltage:
- Induced from monitored conductor
- Frequency Range:
- 50/60 Hz
- Insulation Class:
- 600VAC RMS (UL), 300VAC RMS (CE)
- Output:
- N.O. 1.0A @ 30 VAC/DC
- Operating Temperature:
- 5° to 140‚Ñâ (-15° to 60‚ÑÉ)
- Operating Humidity:
- 10 to 90% RH, non-condensing
- Enclosure Rating:
- NEMA 1
- Mounting:
- foot
- Window Size:
- 0.7 inch min.
- Hysteresis:
- 10% (typical)
- Termination:
- Max. Wire Size:
- 24-14 AWG (22-16 AWG for H308)
- Torque:
- 4.0 in-lbs (7.0 in-lbs for H308)
- Approvals:
- UL file #E150462, CE
- Warranty:
- 5 years
product series features
- High performance devices in split- and solid-core housings
- Minimum trip point as low as 0.5A (H608) ... eliminates the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5HP
- Small size... fits easily inside small enclosures
- Self-gripping iris on the split-core housing for easy installation
- Status LEDs for easy setup and local indication (no LED on the H701)
- 1 Amp status N.O. contact for increased application flexibility
- All devices are 100% solid state
- All devices are polarity insensitive
more information & related documents
Series Description
The Hx08 Series and H701 Series adjustable trip point and standard output current switches offer high performance for building automation systems, and industrial applications. With a wide array of amperage range options, these current switches can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP.
Kele Description
CURR SWITCH, 0.75-50A, ADJ, SOLID CORE, LED
Manufacturer
Veris
