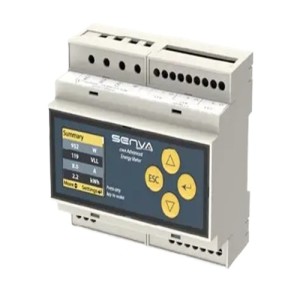

EMX-IP | Senva | Power Monitoring & Protection
ADVANCED RMS ENERGY METER, BACNET IP, MODBUS IP, NO PULSE OUTPUTS
Brand:Senva
MPN:EMX-IP
SKU:EMX-IP
List Price:
$1,613.00
Today's Price:
$838.76
Log in for customized pricingproduct specifications
Color
Gray
Material
Polycarbonate
Display
OLED
Application
Commercial Buildings
product series specifications
Line/High voltage: 90VLN-600VLL (+20%), 50/60Hz, 1-3 phase
Power Consumption: 4W Typ.
Frequency Range: 50/60 H
Outputs for RS-485: 2-wire, BACnet MS/TP, Modbus RTU, Modbus ASCII
Outputs for Baud Rates: 9600, 19200, 38400, 57600, 76800, 115200
Outputs for RS-485 Loading: 1/4 Unit
Dual Outputs: Import & Export Energy Outputs
Type: Solid state dry contact
Specifications: N.O and N.C. 300mA max, 40VAC/DC
Pulse scaling: 0.01, 0.1, 1, 10, 100, 1K WH/Pulse
Duration: 10,25,50,100,250,500 (MS)
Input Rating: 3.5 +/- 0.5 VDC, short circuit current is 10mA max
Pulse Rate: 50 Hz (default), configurable up to 500 Hz
Pulse Active: <100 Ohms
Pulse Undefined: 100-1000 Ohms
Pulse Idle: >1000 Ohms
product series features
- Configuration App with SenvaSync, plus download logged data!
- Real-time logging data
- OLED screen with user interface that streamlines the setup process
- Self-powered with 1 to 3 phase voltage, 90-600V
- Functions as three indepent voltage/current power meters in one - mix and match CT sizes for multiple loads
- 2 pulse inputs for summing multiple meters or for general (configurable) pulse counting from any pulse meter - water, gas, steam, etc
- 2 pulse outputs for separately tracking positive and negative energy usage, additional power metrics or power quality alarms
- Provides accurate RMS (Root Mean Square) metering of harmonic loads
- Supports mounting on PR30 (TS 35/F6) DIN rail
more information & related documents
Series Description
The EMX Advanced is the most user-friendly and quick installation True RMS energy meter on the market. Its line is powered with a color OLED screen and data-rich user interface, making setup as easy as L1, L2, L3. Equipped with both pulse and RS485 outputs, the EMX Advanced can connect to almost any metering or control device. Ideal for retrofits, the EMX accepts any 0.333V CT or standard metering Rogowski coil with no need for time-consuming and bulky integrators. Mixed or match loads or CT sizes!
Kele Description
ADVANCED RMS ENERGY METER, BACNET IP, MODBUS IP, NO PULSE OUTPUTS
Manufacturer
Senva
Related Documents
Senva EMX Series Datasheet
