CT-810

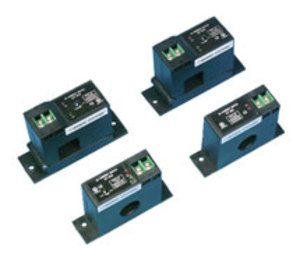

* product series image displayed

CT-810 | MAMAC Systems | Power Monitoring & Protection

SOLID CORE; ADJUSTABLE; 1.0 TO 200AMP;

Brand:MAMAC Systems

MPN:CT-810

SKU:CT-810

List Price:

$77.14

Today's Price:

$40.11



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Mounting

Solid Core

Current Range

1-200 A

Trip Point Type

Adjustable

Contact Form

SPST

product series specifications

    Supply Voltage:
  • Self-powered
    Isolation Voltage:
  • 1000 VAC
    Frequency:
  • 45/65 Hz
    Insulation Class:
  • 1000 VAC
    Adjustable Setpoint:
  • 1.0 to 200 Amps
    Fixed Setpoint:
  • 0.5 Amp
    Max. Switching Current:
  • 1.0 Amp @ 35 VAC/VDC; 0.35 Amp @ 135 VAC/VDC
    Operating Temperature:
  • 32° to 158‚Ñâ (0° to 70‚ÑÉ)
    Operating Humidity:
  • 10-90% RH, non-condensing
    Enclsoure Rating:
  • NEMA 1
    Mounting:
  • foot
    Window Size:
  • 0.75 inch
    Weight:
  • 0.25 lb (0.11 Kg)
    Approvals:
  • UL Listed #E330761, CE, RoHS
    Warranty:
  • 1 year

product series features

  • Available in solid or split-core for ease of installation
  • Fixed or adjustable set point
  • LED indication for load status and current flow
  • Switch output is rated for up to 135 VAC/VDC

more information & related documents

Series Description

The MAMAC Systems CT-800/805/810/815 Series are solid-state switches that operate when the AC current level sensed by the internal current transformer exceeds a fixed or adjustable trip point. Internal circuits are totally powered by induction from the conductor being monitored. There is zero off-state leakage current in the solid-state relay output that can switch AC or DC circuits. The CT-800 & 810 models are solid core while the CT-805 & 815 models are split core.

Kele Description

SOLID CORE; ADJUSTABLE; 1.0 TO 200AMP;

Manufacturer

MAMAC Systems
