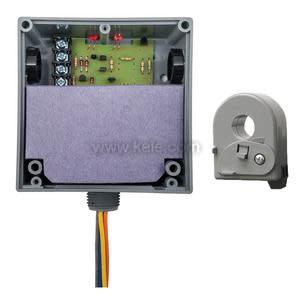

Enclosed 10 Amp Relay/Remote Solid Core Current Switch Combination, Fixed
Brand:Functional Devices
MPN:RIBXLCRF
SKU:RIBXLCRF
List Price:
$113.00
Today's Price:
$58.76
product specifications
Mounting
Solid Core
Current Range
1.25-150 A
Trip Point Type
Fixed
Contact Form
SPST
product series specifications
- Frequency:
- 50/60 Hz
- Switch Rating:
- 30 VAC/VDC @ 0.4A maximum
- LED Indication:
- :
- LED#1 ON Relay activated
- :
- LED#2 ON Current trip point exceeded
- Response Time:
- 20mS
- Relay:
- Life Rating:
- 10 million cycles minimum
- mechanical:
- Coil Pull In Voltage:
- 10- 30 VAC/VDC models:
- 9 VAC, 10 VDC
- 24 VAC/VDC models:
- 18 VAC, 22 VDC
- Coil Drop Out Voltage:
- 10-30 VAC/VDC models:
- 2.1 VAC, 2.8 VDC
- 24 VAC/VDC models:
- 3 VAC, 3.8 VDC
- Off State Leakage:
- < .03 mA @ 30 VAC/VDC
- On State Voltage Drop:
- <0.3 VAC/VDC @ 0.1A:
- <1.6 VAC/VDC @ 0.4A:
- Lead Wires:
- 16" (40.6 cm) 600V Rated
- Operating Temperature:
- -30° to 140°F (-34° to 60°C)
- Operating Humidity:
- 5 to 95% (non-condensing)
- Dimensions:
- Enclosure:
- 4"H x 4"W x 1.8"D
- (10.2 x 10.2 x 4.6 cm), NEMA 1 with 1/2‚Ä= NPT:
- Solid Core:
- 1.86'' x 1.46'' (3 x 3.71 cm )
- Split Core:
- 2.52'' x 2.0'' (6.4 x 5.08 cm)
- Window Size:
- Solid Core:
- 0.5'' (1.27 cm)
- Split Core:
- 0.52'' x 0.52'' (1.32 x 1.32 cm)
- Weight:
- 1 lb (0.45 kg)
- Approvals:
- UL File #E68805
- (UL 916) and #S7312 (UL 864), CE, RoHs:
- Warranty:
- 1 year
- :
- :
- :
- :
product series features
- Cost-effective current sensing with a control relay
- Self-contained housing with high and low voltage separation
- LED indication of relay and current sensor trip
- Optional relay contact override switch
- Plenum-rated housing
- UL 916 Energy Management and UL 864 Fire
more information & related documents
Series Description
The Functional Devices Relay in a Box RIBX Series current switch and relay provides a unique and cost-effective solution to on/off motor control and current sensing status indication. Combined in a single, convenient junction box with high-voltage and low-voltage separation are a control relay and a current-sensing status switch. A three-position switch can be closed, open, or on automatic to override the output of the relay. This versatile relay and current switch allows both control and status sensing of electrical loads in building automation systems. Plus, it is all contained in an easy-to-install housing.
Kele Description
CURRENT SWITCH & RELAY
Manufacturer
Functional Devices
RIBX24 SERIES Datasheet
