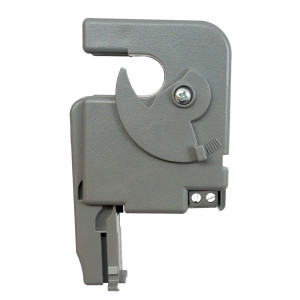

CURRENT SWITCH, SPLIT CORE, ADJUSTABLE, .25-150 AM
Manufacturer:Functional Devices
MPN:RIBXGTA-ECM
SKU:RIBXGTA-ECM
availability:Usually Ships in Less Than 6 Business Days
add to cart
product family specifications
RIBXK, RIBXG SERIES
Monitored AC Current
RIBXKF, RIBXKTF 0.25-150A
RIBXKA, RIBXKTA 0.5-150A
RIBXGF, RIBXGTF 0.35-150A
RIBXGA, RIBXGTA 0.75-150A
Relay Trip Point
RIBXKF, RIBXKTF 0.25A, fixed
RIBXKA, RIBXKTA 0.5-150A, adjustable
RIBXGF, RIBXGTF 0.35A, fixed
RIBXGFL, RIBXGTFL 0.75A, fixed
RIBXGA, RIBXGTA 0.75-150A, adjustable
Relay Type
Solid state, normally open
Relay Rating
30 VAC/VDC, 0.4A maximum
Off State Leakage
<30 µA @ 30 VAC/VDC
On State Voltage Drop
<0.3 VAC/VDC @ 0.1A
<1.6 VAC/VDC @ 0.4A
RIBXK420 SERIES
Supply Voltage
24 VDC
Output
4-20 mA @ 600Ω, 30 mA maximum
Accuracy
±5% FS
Linearity
±1% FS
Input Range
20, 50, or 100A
General
Frequency
Suitable for most VFD applications
Maximum Sensed Voltage
600 VAC
Terminations
16" (40.6 cm), 18 AWG, 600V wires or terminals for 14-22 AWG
Operating Temperature
-30° to 140℉ (-34.4° to 60℃)
Weight
0.3 lb (0.13 kg)
Approvals
UL916, UL864 UL File #S7312, CE, RoHs
Warranty
1 year
product family features
- Solid- and split-core switch models have fixed (go/no go) or adjustable trip points
- Solid-core transducer models have a 4-20 mA output
- Low cost
- Ratcheting cam clamp to secure switch to wire
- Removable mounting tab
more information & related documents
Family Description
The Functional Devices RIBXK, RIBXG, RIBXK420 Series include both current-operated switches and current transducers. Solid-core and split-core current-operated switch models have a solid-state switch that operates when the current level sensed by the internal current transformer exceeds a fixed or adjustable set point. Solid-core current transducer models output a 4-20 mA signal proportional to the line current being monitored.
