RIBX24SBA | Functional Devices | Power Monitoring & Protection

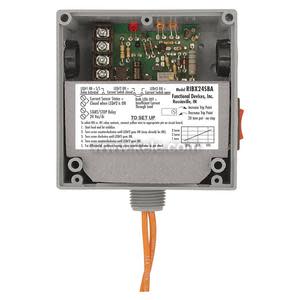

Enclosed 20 Amp Relay/Current Switch Combination, Adjustable + Override Switch
Brand:Functional Devices
MPN:RIBX24SBA
SKU:RIBX24SBA
List Price:
$211.11
Today's Price:
$109.78
Log in for customized pricingproduct specifications
Core Type
Enclosed
Set Point Type
Adj.
Type
INTERNAL
Connection
Wire Leads
Contact Form
SPST
Coil Voltage
24 VAC,24 VDC
Current Range
0.5 - 20 A
Trip Point Type
Adjustable
Output Signal
Relay
Mount
Surface
product series specifications
Frequency: 50/60 Hz
Output: 0-5 VDC or 0-10 VDC, proportional to current sensing range
Output Impedance: 30kΩ minimum
LED Indication: LED on = relay activated
Relay:
Life Rating: 10 million cycles minimum mechanical
Pull In Voltage: 10-30 VAC/VDC models 9 VAC, 10 VDC; 24 VAC/VDC models 18 VAC, 22 VDC
Drop Out Voltage: 10-30 VAC/VDC models 2.1 VAC, 2.8 VDC; 24 VAC/VDC models 3 VAC, 3.8 VDC
Accuracy: ±1% FS
Lead Wires: 16" (40.6 cm)
Operating Temperature: -30° to 140°F (-34° to 60°C)
Operating Humidity: 5% to 95% (non-condensing)
Dimensions: 4"H x 4"W x 1.8"D (10.2 x 10.2 x 4.6 cm), NEMA 1 th 1/2" NPT
Weight: Approximately 1 lb (0.45 kg)
Approvals: UL and cUL listed, file #E68805 (UL 916) and #S7312 (UL 864)
RoHS Statement: Yes
Warranty: 1 year
product series features
- Cost-effective analog current sensing with a control relay
- Self-contained housing with high- and low-voltage separation
- LED indication of relay
- Optional relay contact override switch
- Plenum-rated housing
- UL and ULC listed for UL 916 Energy Management and UL 864 Fire
more information & related documents
Series Description
The Relay in a Box RIBX-V Series from Functional Devices provides a unique and cost-effective solution to on/off motor control and analog current sensing. Combined in a single, convenient junction box with high- and low-voltage separation are a control relay and a current sensing transducer that outputs 0-5 VDC or 0-10 VDC. A three-position closed/open/auto switch is available to override the output of the relay. This versatile product allows both control and analog current sensing of electrical loads by a building automation system, all in a self-contained, easy-to-install housing.
Kele Description
ENCLOSED RELAY 20AMP SPST 24VAC/DC INTERNAL ADJUSTABLE AC SENSOR WITH OVERRIDE SWITCH
Manufacturer
Functional Devices
Related Documents
RIBX-V Series Datasheet
