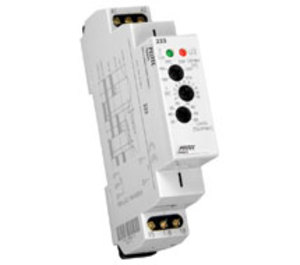

* product series image displayed

R35MOD/V/110 | ND Metering Solutions | Power Monitoring & Protection

RAIL 350 POWER METER FOR CYLON

Brand:ND Metering Solutions

MPN:R35MOD/V/110

SKU:R35MOD/V/110

List Price:

$1,150.00

Today's Price:

$598.00

catalog page

product series specifications

Supply Voltage: 233 48-276 VAC, 264 6-30 VDC

Power Consumption: 233 (AC max)1.2 VA, 264 (DC max)1.2 VA

Upper Voltage Setting: 233 160-276 VAC, 264 18-30 VDC

Lower Voltage Setting: 233 30-95% of maximum, 264 35-95% of maximum

Maximum Constant Voltage: 233 276 VAC, 264 36 VDC

Setting Accuracy: 5%

Relay Output Form: SPDT

Rated Current: 16A

Inrush Current: 30 Amps / <3s

Operating Temperature: -4° to 131°F (-20° to 55°C)

Storage Temperature: -22° to 158°F (-30° to 70°C)

Mounting: DIN rail

Approvals: EN 60255-6, EN 61010-1, UL #E352333, CE, RoHS

product series features

Minimum voltage setting as a percentage of the maximum voltage
DIN rail mounting
Adjustable time delay up to 10 seconds to avoid nuisance tripping
Two independent levels of voltage (upper + lower) can be set

more information & related documents

Series Description

The 200 Series voltage monitors control supply voltage for equipment that is sensitive to supply tolerance and offers protection against under- and over-voltage conditions. They have adjustable time delays to avoid nuisance tripping. The 200 Series have red and green LEDs to indicate 3 conditions: normal operation and 2 fault conditions.

Kele Description

RAIL 350 POWER METER FOR CYLON

Manufacturer

ND Metering Solutions
