MCP-80313101

MCP-80313101 | KMC Controls | Pneumatics & Fittings

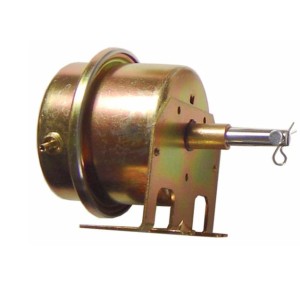

Actuator: Metal, 1-11/16, 5-10 PSI, Clevis

Brand:KMC Controls

MPN:MCP-80313101

SKU:MCP-80313101

List Price:

$221.00

Today's Price:

$114.92



Availability: 10 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Pressure Range

5-10 psig

product series specifications

    Effective Area:
  • 8 sq. inches (52 sq. cm)
    Stroke:
  • 1-11/16" (43 mm)
    Supply Connection:
  • 3/16" (5 mm) OD metal fittings
    Supply Pressure:
  • 0 to 20 psi (138 kPa) operating, 30 psi (207 kPa) maximum
    NOTE: If application requires operation near:
    maximum temperature AND maximum:
    pressure, install a tubing restraint at the:
    actuator connection.:
    Temperature Limits::
    Operating:
  • -20° to 180‚Ñâ (-29° to 82‚ÑÉ)
    Shipping :
  • -40° to 180‚Ñâ (-40° to 82‚ÑÉ)
    Material:
    :
  • Body CRS with zinc and dichromate
    :
  • Diaphragm Neoprene
    Bearings:
  • Bronze or Delrin (plastic)
    Shaft:
  • CRS with nickel plating
    Weight:
  • 2.0 lb. (0.9 kg)
    Damper Rating @ 1000 fpm (5.08 m/s):
    :
  • Gradual 8 sq. ft. (0.74 sq. m)
    :
  • Two-position 10 sq. ft. (0.93 sq. m)
    Spring Ranges and Retracted/Extended Torque:
    (Based on 0 and 20 psi applied):
    :
  • 3‚Äì8 psi (21‚Äì55 kPa), 20/81 in-lb. (2/9 N‚Ä¢m) @ 90°
    :
  • 4‚Äì8 psi (28‚Äì55 kPa), 27/81 in-lb. (3/9 N‚Ä¢m) @ 90°
    :
  • 3‚Äì12 psi (21‚Äì83 kPa), 20/54 in-lb. (2/6 N‚Ä¢m) @ 90°
    :
  • 5‚Äì10 psi (34‚Äì69 kPa), 34/67 in-lb. (4/8 N‚Ä¢m) @ 90°
    :
  • 8‚Äì13 psi (55‚Äì90 kPa), 54/47 in-lb. (6/5 N‚Ä¢m) @ 90°
    Tolerance:
  • +0.5/-1.0 psi at start point and
    :
  • ±1.0 psi at finish point

product series features

  • The metal body is ideal for ceiling installations
  • Mounting bracket supplied on all models except -2099 and -3003
  • Crank arm linkage or direct connection between damper and actuator shaft available

more information & related documents

Series Description

KMC MCP-8031 pneumatic actuators are designed to control small dampers in HVAC air handling systems or air terminal units. They feature a right-angle bracket for mounting to the side of VAV terminals, ductwork, or damper frame. The metal body is also suited to ceiling plenum installations where nonmetallic actuators are not allowed. The actuator may be rotated in its bracket (supplied on most models) so air connections can be made where needed. Actuators are supplied with a clevis and optional clevis/cotter pins or crank arm linkage.

Kele Description

PNEU ACT/5-10 PSI/BRZ BUSHING/CLEVIS COTTER

Manufacturer

KMC Controls

Related Documents

PDF - MCP Series DatasheetMCP Series Datasheet
