V-3752-6022 | Johnson Controls | Pneumatics & Fittings

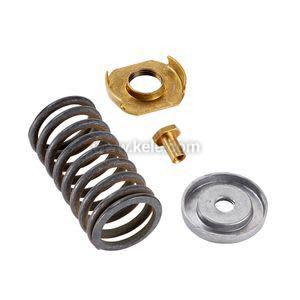

Spring Kit, Range 9-13psig, Actuator V-3000
Brand:Johnson Controls
MPN:V-3752-6022
SKU:V-3752-6022
product specifications
Type
Spring Kit
Pressure Range
9-13 psig
Stroke
5/16 in
product series specifications
Connections:Barb for 1/4" or 1/8" OD poly tubing; 1/8" NPT for brass fitting
Operating Temperature:-20° to 150°F (-29° to 66°C)
Media Temperature Range:Maximum fluid temperature 338°F (170°C), 100 psig (103 kPa) steam
Maximum Pressure:25 psig (172 kPa)
Warranty:1 year
product series features
- Low profile fits tight spaces
- Barbs for 1/4 in or 1/8 in OD poly tubing, or 1/8 in FNPT air connections
- Fits all VG7000 valves from 1/2 in to 2 in
- Replaceable synthetic rubber diaphragm
- Full selection of spring ranges
more information & related documents
Series Description
The Johnson Controls V-3000, MP800 Series pneumatic valve assemblies accurately control the flow of steam, hot water, or cold water through coils and heat exchangers of all types. These actuators have a molded, synthetic rubber diaphragm contained in a sturdy metal housing that protects against dirt and damage. Optional V-9502 pilot positioners offer increased force for very stable, accurate control, or for sequencing heating/cooling valves.
Kele Description
SPRING KIT;9-13#; FOR VLV; W/ 5/16 STROKE
Manufacturer
Johnson Controls
Related Documents
V-3000 Product Bulletin
