MP843C001F

MP843C001F | Johnson Controls | Pneumatics & Fittings

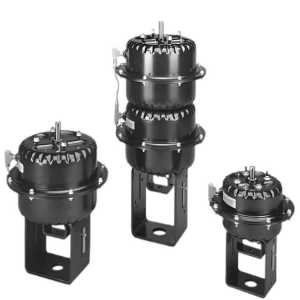

PNEU/ACT/50IN-LB/3-7PSIG/3/4STRK/W/LINK

Manufacturer:Johnson Controls

MPN:MP843C001F

SKU:MP843C001F

list price:

1,268.02

634.01



(login for better pricing)
USD

availability:Usually Ships in Less Than 8 Business Days

add to cart

arrow

product family specifications

Action

V-3000 Spring return up

MP800 Field reversible action

Connections

Barb for 1/4" or 1/8" OD poly tubing; 1/8" NPT for brass fitting

Positioner

V-3000 Order separately V-9502-75 (and spring kit V-9502-6801)

MP800 Order separately V-9502-95 (and mounting kit MP8000-6002)

Diaphragm

V-3000 4.5" (11.4 cm) diameter, 8 sq. in. (20 sq. cm) effective area

MP800 8.7" (22.1 cm) diameter, 25 sq. in. (64 sq. cm) effective area

Spring Range

V-3000 Depends on separately ordered spring VG7000-100x

MP82xC001 3-7 psi

MP82xD001 4-8 psi

MP82xE001 9-13 psi

Stroke

V-3000 5/16" to 3/4" (0.8 to 1.9 cm) depends on separately ordered spring

MP821 5/16" (0.8 cm)

MP822 1/2" (1.3 cm)

MP823 3/4" (1.9 cm)

Operating Temperature

-20° to 150℉ (-29° to 66℃)

Media Temperature Range

Maximum fluid temperature 338℉ (170℃), 100 psig (103 kPa) steam

Maximum Pressure

25 psig (172 kPa)

Dimensions

V-3000 3.5"H x 4.1"DIA (8.8 x 10.5 cm)

MP800 10.7"H x 8.7"DIA (27.2 x 22.1 cm)

Weight

V-3000 0.9 lb (0.41 kg)

MP800 14.0 lb (6.4 kg)

Mounting

V-3000 Set screw to VG-7000 valve bonnet

MP800 Threaded nut to VG-7000 valve bonnet

Warranty

1 year

product family features

  • Low profile fits tight spaces
  • Barbs for 1/4" or 1/8" OD poly tubing, or 1/8" FNPT air connections
  • Fits all VG7000 valves from 1/2" to 2"
  • Replaceable synthetic rubber diaphragm
  • Full selection of spring ranges

more information & related documents

Family Description

The Johnson Controls V-3000, MP800 Series pneumatic valve assemblies accurately control the flow of steam, hot water, or cold water through coils and heat exchangers of all types. These actuators have a molded, synthetic rubber diaphragm contained in a sturdy metal housing that protects against dirt and damage. Optional V-9502 pilot positioners offer increased force for very stable, accurate control, or for sequencing heating/cooling valves.
