MP953D1107

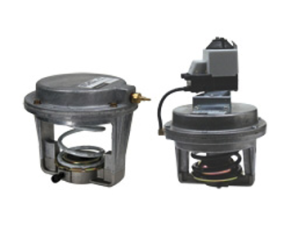

* product series image displayed

MP953D1107 | Honeywell | Pneumatics & Fittings

PNEU VLV ACT 7 1/8" DIA,8-13 PSI,3/4" STR,N/DW

Brand:Honeywell

MPN:MP953D1107

SKU:MP953D1107

List Price:

$1,314.00

Today's Price:

$683.28



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Reverse Acting

Pressure Range

8-13 psig

Stroke

3/4 in

product series specifications

    Operating Temperature:
    :
  • MP953C/E 160‚Ñâ (71‚ÑÉ) maximum diaphragm temperature
    :
  • MP953D/F 248‚Ñâ (120‚ÑÉ) maximum diaphragm temperature
    Maximum Pressure:
  • 25 psi (172 kPa)
    Weight:
    :
  • MP953C - 5" 2.0 lb (0.9 kg)
    :
  • MP953C - 8" 6.7 lb (3.0 kg)
    :
  • MP953C - 13" 22.4 lb (10.2 kg)
    :
  • MP953D - 7‚Ä= 5.2 lb (2.4 kg)
    :
  • MP953E - 5" 3.7 lb (1.7 kg)
    :
  • MP953E - 8" 8.6 lb (3.9 kg)
    :
  • MP953E - 13" 24.4 lb (11.1 kg)
    :
  • MP953F - 7‚Ä= 8.0 lb (3.6 kg)
    Warranty:
  • 1 year

product series features

  • Rolling diaphragm for long life and low hysteresis
  • Easily attached to valve
  • May be installed after piping valve
  • Slide lock feature permits simple engagement to stem
  • Direct or reverse-action control
  • Models available with pilot positioner

more information & related documents

Series Description

The Honeywell MP953 Series pneumatic globe valve actuators operate Honeywell V5011, V5013 (threaded) and VGF (flanged) Series valves to provide proportional control of steam or hot water or cold water in HVAC systems.

Kele Description

PNEU VLV ACT 7 1/8" DIA,8-13 PSI,3/4" STR,N/DW

Manufacturer

Honeywell
