243-0018 | Siemens Industry | Pneumatics & Fittings

List Price:

Today's Price:

product specifications

Type

Relay

Maximum Air Pressure: 30 psig (207 kPa)

Ambient Temperature Range: 140°F (60°C)

Air Connections: Barbed connector for 1/4" (6.4 mm)

Mounting: In-line or bracket

Air Capacity at 2 psi (14 kPa) Differential: 65 scfm (18 ml/s)

Air Consumption: None

Housing: Glass-filled nylon

Diaphragm: Neoprene with fabric

Weight: 4 oz (0.1 kg)

Lightweight and small
Can be mounted in any position
Can be supported by the polyethylene tubing connected to the input and output fittings

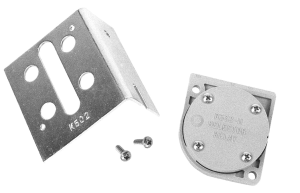

Bracket provided for fixed mounting

Series Description

The Siemens/Powers 243-0018 Series Highest Pressure Signal Selector is designed to select and transmit the higher of two pneumatic input signals.

Kele Description

PNEU/HI-SELECT RELAY

Manufacturer

Siemens Industry
