243-0011 | Siemens Industry | Pneumatics & Fittings
RL243 AN RELAY INDUSTRIAL DUTY
Brand:Siemens Industry
MPN:243-0011
SKU:243-0011
product specifications
Type
Relay
product series specifications
Instrument Air Supply:
Normal: 0-25 psi (0-172 kPa)
Maximum: 30 psi (207 kPa)
Ambient Temperature Range:
Operating: 40 to 120°F (4.4 to 49°C)
Storage: -20 to 120°F (-29 to 49°C)
Adjustments: None required
Hysteresis: Within 0.25 psi (1.7 kPa)
Relief Valve Differential: Within 1.0 psi (6.89 kPa)
Air Connections: 1/8" NPT
Mounting: Integral brackets for wall or panel
product series features
- Operates on a force balance principle
- Provided with a Powers' two-valve design
- Does not require any adjustment or calibration
- Can be mounted in any position
more information & related documents
Series Description

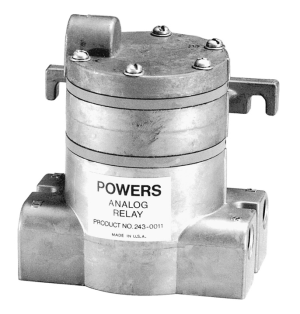

The Siemens/Powers 243-0011 Series Analog Relay is a pneumatic auxiliary device designed to assist the engineer in obtaining specialized control action within a pneumatic control system. Applications include amplifying, summing, differential pressure, ratio control, higher pressure, and signal characterization control. The relay operates on a force balance principle and is provided with a Powers' two-valve design to assure stability and prevent unnecessary air consumption. Internal relief assembly prevents signal lock-up and assures fail-safe operation. This relay does not require any adjustment or calibration and can be mounting in any position.
Kele Description
PNEU/ANALOG RELAY
Manufacturer
Siemens Industry
Related Documents
243-0011 Analog Relay Technical Instructions
