T-4752-201 | Johnson Controls | Pneumatics & Fittings

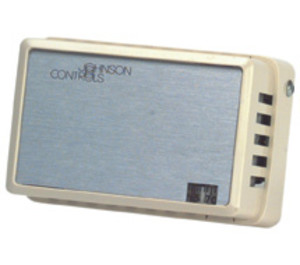

PNEUMATIC THERMOSTAT
Manufacturer:Johnson Controls
MPN:T-4752-201
SKU:T-4752-201
List Price:
$649.60
Today's Price:
$337.79
product family specifications
Connections
Barbs for 5/32" OD poly tubing
Number of Pipes
1 or 2 depending on model selected
Sensor Element
Bimetal
Sensitivity
T4002 Adjustable from 0.75 to 4 psig/℉ (9 to 50 kPa/℃)
T4054/T4100 Adjustable from 1 to 3 psig/℉ (12 to 38 kPa/℃)
Setpoint Range
55° to 85℉ (13° to 29℃)
Setpoints
T4002/T4100 Single
T4054 Dual
Remote Bulb
No
Air Consumption
T4002 20 scim (5 mL/s)
T4054 38 scim (10 mL/s)
T4100 25 or 45 scim (7 or 12 mL/s), depending on restrictor
Operating Temperature
-20° to 130℉ (-29° to 54℃)
Mounting
Wall
Maximum Operating Pressure
25 psi (170 kPa)
Dimensions
2.1"H x 3.1"W x 1.8"D (5.3 x 8.0 x 4.5 cm)
Weight
0.4 lb (0.2 kg)
Warranty
1 year
product family features
- Adjustable sensitivities and set points
- Individual set points on dual temperature thermostats
- Pneumatic feedback for greater accuracy
- Vibration and shock resistant
- Meets governmental and commercial requirements
- Single and dual bimetal sensing elements
- Optional all-metal covers
more information & related documents
Family Description
The T4000 Series pneumatic room thermostats provide individual space temperature control in all types of heating and cooling applications for HVAC systems. By producing a proportional output signal, these pneumatic thermostats modulate pneumatic valves and damper actuators in response to load changes in the space. A variety of high volume and low volume output thermostats are available to meet the functional requirements of any building automation system, BAS. The T4000 Series pneumatic thermostat is available in one- and two-pipe, dual temperature, horizontal, and vertical configurations.
Kele Description
PNEUMATIC THERMOSTAT
Manufacturer
Johnson Controls
