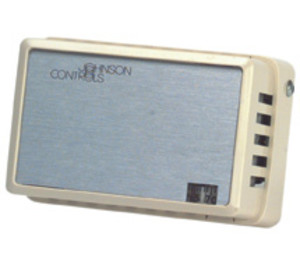

* product series image displayed
T-4002-6038 | Johnson Controls | Pneumatics & Fittings
PLASTER GROUND PLATE
Brand:Johnson Controls
MPN:T-4002-6038
SKU:T-4002-6038
product specifications
Type
Ground Plate
product series specifications
- Connections:
- Barbs for 5/32" OD poly tubing
- Number of Pipes:
- 1 or 2 depending on model selected
- Sensor Element:
- Bimetal
- Sensitivity:
- :
- T4002 Adjustable from 0.75 to 4 psig/‚Ñâ (9 to 50 kPa/‚ÑÉ)
- :
- T4054/T4100 Adjustable from 1 to 3 psig/‚Ñâ (12 to 38 kPa/‚ÑÉ)
- Setpoint Range:
- 55° to 85‚Ñâ (13° to 29‚ÑÉ)
- Setpoints:
- :
- T4002/T4100 Single
- :
- T4054 Dual
- Remote Bulb:
- No
- Air Consumption:
- :
- T4002 20 scim (5 mL/s)
- :
- T4054 38 scim (10 mL/s)
- :
- T4100 25 or 45 scim (7 or 12 mL/s), depending on restrictor
- Operating Temperature:
- -20° to 130‚Ñâ (-29° to 54‚ÑÉ)
- Mounting:
- Wall
- Maximum Operating Pressure:
- 25 psi (170 kPa)
- Dimensions:
- 2.1"H x 3.1"W x 1.8"D (5.3 x 8.0 x 4.5 cm)
- Weight:
- 0.4 lb (0.2 kg)
- Warranty:
- 1 year
product series features
- Adjustable sensitivities and set points
- Individual set points on dual temperature thermostats
- Pneumatic feedback for greater accuracy
- Vibration and shock resistant
- Meets governmental and commercial requirements
- Single and dual bimetal sensing elements
- Optional all-metal covers
more information & related documents
Series Description
The T4000 Series pneumatic room thermostats provide individual space temperature control in all types of heating and cooling applications for HVAC systems. By producing a proportional output signal, these pneumatic thermostats modulate pneumatic valves and damper actuators in response to load changes in the space. A variety of high volume and low volume output thermostats are available to meet the functional requirements of any building automation system, BAS. The T4000 Series pneumatic thermostat is available in one- and two-pipe, dual temperature, horizontal, and vertical configurations.
Kele Description
PLASTER GROUND PLATE
Manufacturer
Johnson Controls
