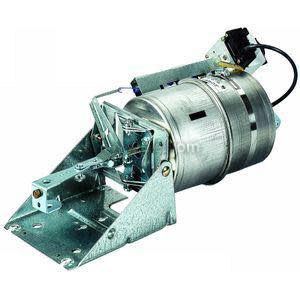

* product series image displayed
MP918B1006/U | Honeywell | Pneumatics & Fittings
Pneumatic Actuator,3-13Lb Spring Return,W/ External Mounting Bracket,Crank Arm
Brand:Honeywell
MPN:MP918B1006/U
SKU:MP918B1006
List Price:
$1,222.00
Today's Price:
$635.44
Availability: 1 In Stock
product specifications
Connection Type
Barbed
Pressure Range
3-13 psig
Connection Configuration
Straight
Connection Size
5/32 or 1/4 in
product series specifications
- Connections:
- :
- MP918A, MP920 Barbs for 5/32" OD (4 mm) tubing for pilot; 1/4" OD (6 mm) tubing for main and branch
- :
- MP920 Barbs for 1/4" OD (6 mm) tubing
- Diaphragm:
- :
- MP918 Neoprene, rolling type, 23.8 sq. in. (154 sq. cm) effective area
- :
- MP920 Neoprene, rolling type, 24.8 sq. in. (160 sq. cm) effective area
- Air Consumption:
- :
- MP918A, MP920 0.021 scfm (9.9 mL/s) @ 18 psi (124 kPa)
- :
- MP918B None
- Operating Temperature:
- :
- MP918A -20° to 160‚Ñâ (-29° to 70‚ÑÉ)
- :
- MP918B -40° to 160‚Ñâ (-40° to 70‚ÑÉ)
- :
- MP920 -40° to 160‚Ñâ (-40° to 70‚ÑÉ)
- Maximum Pressure Rating:
- :
- MP918A 25 psi (172 kPa)
- :
- MP918B, MP920 25 psi (172 kPa)
- Weight:
- :
- MP918A 13.9 lb (6.3 kg)
- :
- MP918B 10.5 lb (4.8 kg)
- :
- MP920 13.1 lb (5.9 kg)
- Warranty:
- 1 year
product series features
- FEATURES, MP918A and B
- Rolling diaphragm for long life
- Low friction shaft bearing
- Close tolerance on operating range and stroke
- Versatile mounting and connecting hardware
- Nonoverlapping spring ranges for sequencing FEATURES, MP920B
- Rolling diaphragm operated for long life
- Fail-safe on over pressure
- Actuator can be swivel mounted from either end to pipe, floor, or wall surface
- Optional positive positioner provides accurate positioning under varying load conditions
more information & related documents
Series Description
The Honeywell MP918A and MP918B pneumatic actuators position damper blades to control airflow in HVAC systems. The MP918A has a positive positioner, otherwise is the same as the MP918B. MP920B actuators have a long 6 in stroke and are suitable for fan inlet vane control applications in a VAV system.
Kele Description
PNEU ACT,3-13LB SR,W/ EXT MTG BKT,CRANK ARM
